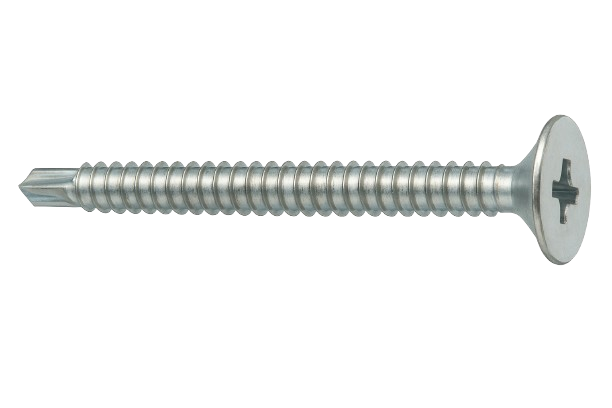

Wafer Flat Head Drilling Screw Zinc #10 * 1-1/2" [Philips Drive]

Wafer Flat Head Drilling Screw Zinc #10 * 1-1/2" [Philips Drive]

0.23 $ CAD
0.23 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These screws speed installation by drilling, tapping, and fastening wood and metal in a single operation. Length is measured from the top of the head.

The screw has a length of 1-1/2'' and a diameter of #10.

View full details

Specifications
Product Number VW-10015
Material Steel
Finish Zinc Plated
Screw Size No. 10
Screw Size Decimal Equivalent 0.190"
Length 1-1/2"
Drill Point Size No. 3
Drill Tip Length 1/4"
For Metal Thickness 0.04"-0.17"
For Wood Thickness 0.25"-0.375"

Head
Diameter 0.48"
Height 0.144"
Drive Size No. 2
Drive Style Phillips
Thread Size 10-24
Thread Direction Right Hand
Threading Fully Threaded
Thread Spacing Coarse
Thread Type UNC
Tapping Method Thread Forming
Head Type Flat
Flat Head Profile Standard
Tip Type Drilling
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal, Wood
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
