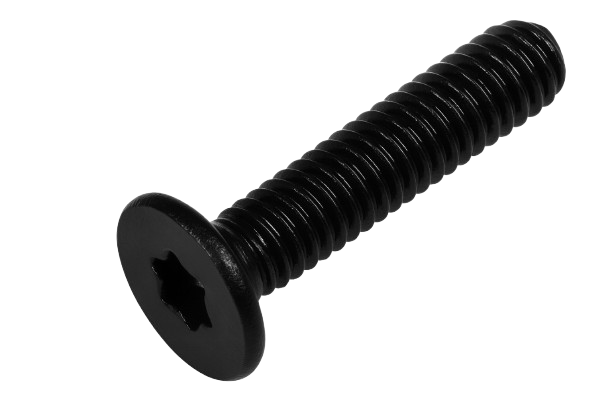

Low-profile flat wide head pressure screw – M2.5 × 0.45 × 12 mm – Stainless Steel 304 – B.O. finish

Low-profile flat wide head pressure screw – M2.5 × 0.45 × 12 mm – Stainless Steel 304 – B.O. finish

0.67 $ CAD
0.67 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

M2.5 × 0.45 × 12 mm pressure screw made of AISI 304 stainless steel is ideal for deeper assemblies or those requiring spacers, while ensuring a low-profile flush finish.
Its flat wide head prevents protrusion and is perfect for visible mechanical or electronic applications.
The B.O. finish offers great corrosion resistance and long-term durability.

View full details

Specifications

Thread Specifications
Thread Type Metric ISO fine pitch
Nominal Diameter M2.5
Thread Pitch 0.45 mm
Thread Length 12 mm
Thread Direction Right-hand
Thread Tolerance 6g
Standard ISO 965 / ISO 261
Material Stainless Steel AISI 304

Head Specifications
Head Type Wide flat head, low profile
Head Diameter ~4.5 to 5.2 mm
Head Height ~0.6 to 0.9 mm
Drive Type None or slotted (depending on version)
Surface Finish B.O. – As-machined or brushed
Material Stainless Steel 304
Application Flush mount, long fastening, electronic devices

Specifications

Thread Specifications
Thread Type Metric ISO fine pitch
Nominal Diameter M2.5
Thread Pitch 0.45 mm
Thread Length 12 mm
Thread Direction Right-hand
Thread Tolerance 6g
Standard ISO 965 / ISO 261
Material Stainless Steel AISI 304

Head Specifications
Head Type Wide flat head, low profile
Head Diameter ~4.5 to 5.2 mm
Head Height ~0.6 to 0.9 mm
Drive Type None or slotted (depending on version)
Surface Finish B.O. – As-machined or brushed
Material Stainless Steel 304
Application Flush mount, long fastening, electronic devices
