Low-profile flat wide head pressure screw – M2 × 0.4 × 6 mm – Stainless Steel 304 – B.O. finish

Low-profile flat wide head pressure screw – M2 × 0.4 × 6 mm – Stainless Steel 304 – B.O. finish

0.60 $ CAD
0.60 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

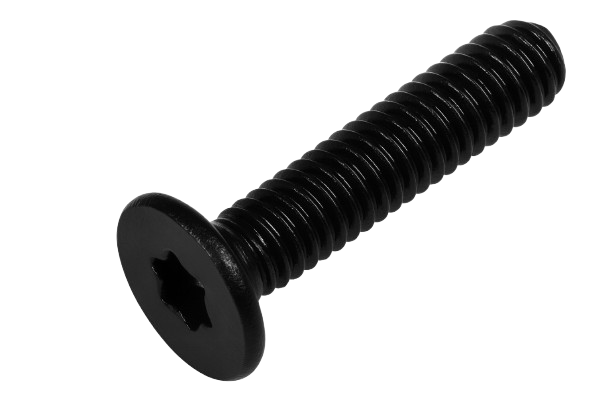

This M2 × 0.4 × 6 mm screw made of stainless steel 304 features a wide, flat, low-profile head, ideal for flush mounting and precision assemblies.
Its fine-pitch metric thread and 6 mm length make it suitable for compact applications requiring corrosion resistance and minimal profile.
The B.O. finish ensures a clean, durable surface.

View full details

Specifications

Thread Specifications

Thread Type Metric ISO fine pitch
Nominal Diameter M2
Thread Pitch 0.4 mm
hread Length 6 mm
Thread Direction Right-hand
Thread Tolerance 6g
Standard ISO 965 / ISO 261
Material Stainless Steel AISI 304

Head Specifications

Head Type Wide flat head, low profile
Head Diameter ~4.0 to 4.5 mm
Head Height ~0.5 to 0.8 mm
Drive Type None or slotted (depending on model)
Surface Finish B.O. – As-machined or brushed
Material Stainless Steel 304
Application Flush-mount, precision, electronics, fine assembly
