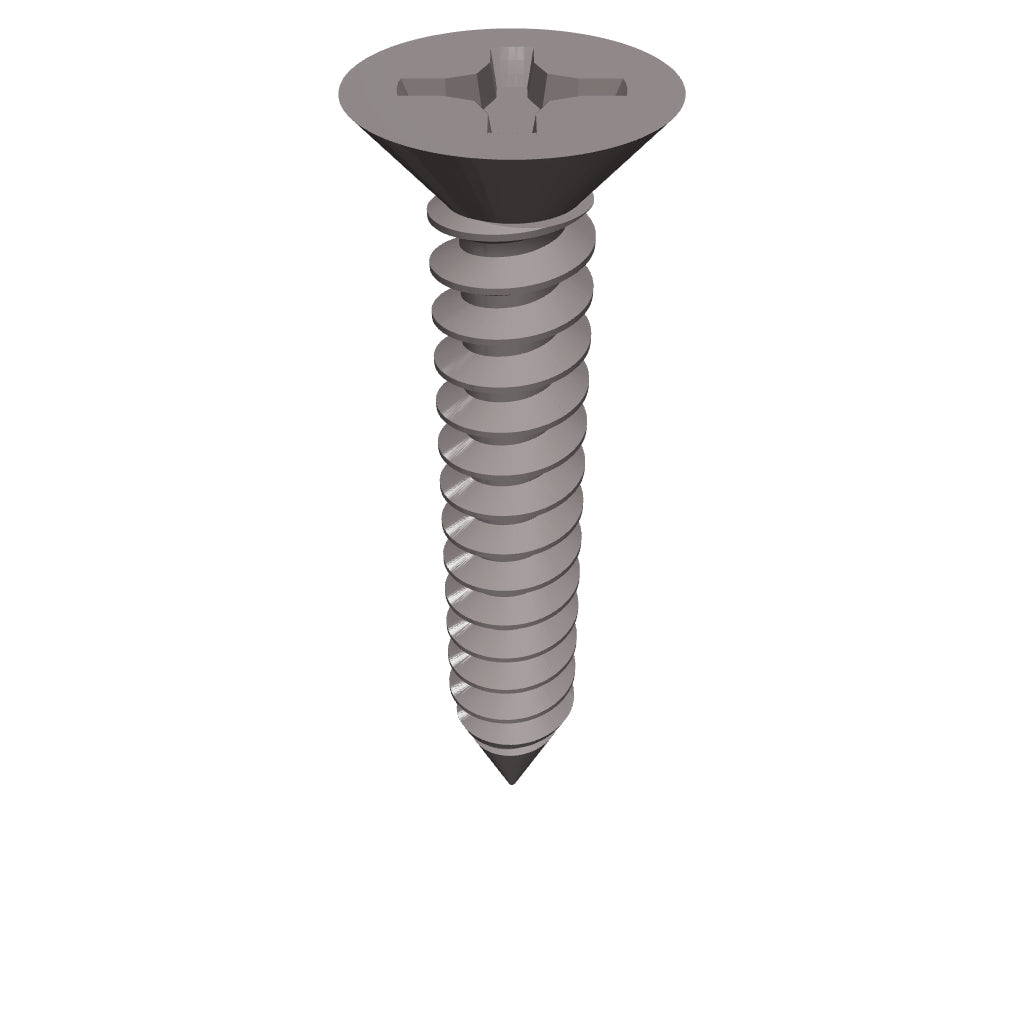

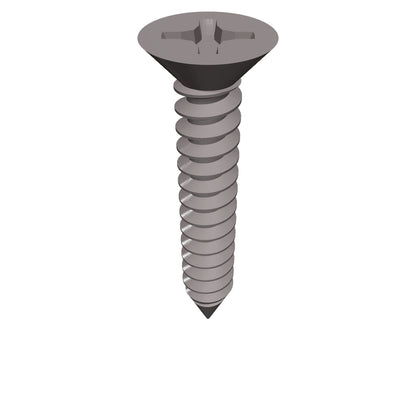

Flat Head Self-Drilling Screw 410 Stainless Steel #14 * 1-1/2" [Square Drive]

Flat Head Self-Drilling Screw 410 Stainless Steel #14 * 1-1/2" [Square Drive]

1.97 $ CAD
1.97 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Made from 410 stainless steel, these screws are strong, wear resistant, and mildly chemical resistant. They're beveled under the head for use in countersunk holes.

 They save you time and effort by drilling their own holes and fastening in a single operation. Not for use with aluminum. Length is measured from the top of the head. The screw has a length of 1-1/2 and a diameter of #14.

View full details

Specifications
Product Number VTSF4-14015-C
Material 410 Stainless Steel
Screw Size 1/4 "
Screw Size Decimal Equivalent 0.25"
Length 1-1/2"
Flat Head Profile Standard

Drill Tip
Type No. 3
Length 5/16 "
Maximum Drilling Thickness 0.21"

Head
Diameter 0.477"
Height 0.153"
Drive Size No. 3
Drive Style Phillips
Approximate Threads per Inch 14
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type BSD
Head Type Flat
Countersink Angle 82°
Tip Type Drilling
Shank Cross Section Round
System of Measurement Inch
For Use In Steel, Stainless Steel, Sheet Metal
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Not Specialty Metals Compliant
