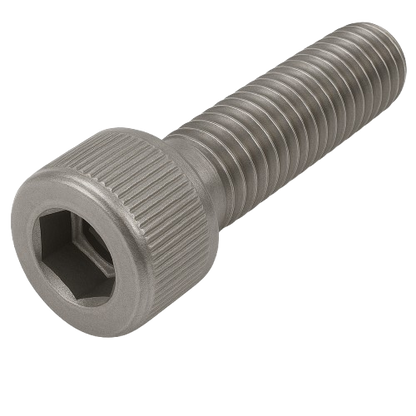

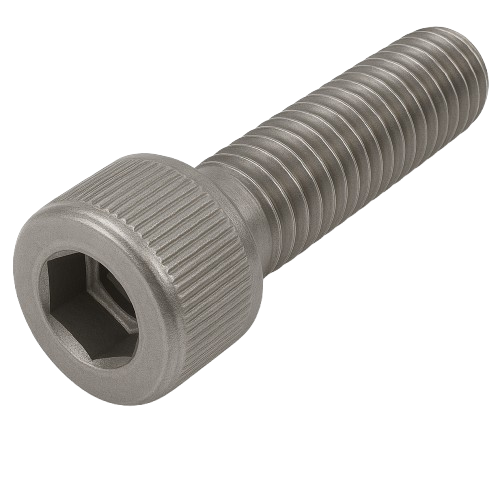

Specifications
Product Number | VPSCMT3-10045 |
Nominal Diameter | M10 * 1.5mm |
Length | 45mm |
Material and/or Plating | A4 Stainless Steel [Equivalent 316 SS] |
System of Measurement | Metric |
Thread Specifications |
|
Threading | Fully Threaded |
Type | ISO Metric Pitch | Coarse |
Direction | Right Hand |
Size | M10 * 1.5mm |
Fit | Class 5g6g |
Head Specifications |
|
Type | Socket |
Profile | Standard |
Diameter | 16.00mm |
Height | 10.00mm |
Drive Style | Allen Key |
Drive Size | 8.00mm |
Strength Specifications |
|
Strength Grade/Class |
|
Tensile Strength | Hardness | 75,000 psi | Rockwell B79 |
Shear Strength | 45,000 psi |
Classification | DIN 912 |
