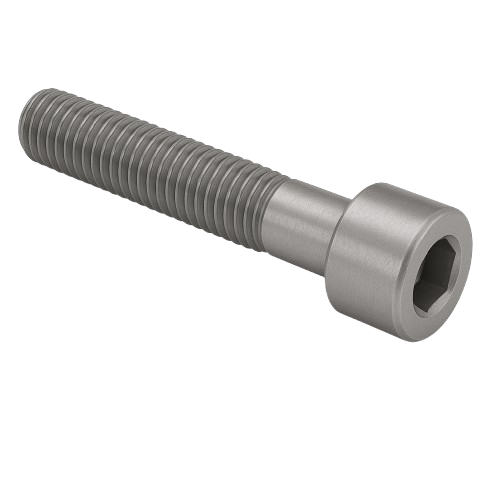

Socket Head Cap Screw Stainless Steel 5/16-18 * 2-1/2" [Cup Point] [Allen Drive]

RJM-Fasteners

1.90 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Price may change with quantity see chart under PROMOTIONS

Product Number	VPSC-02025
Head Type	Socket
Socket Head Profile	Standard
Drive Style	Hex
System of Measurement	Inch
Thread Direction	Right Hand
Thread Size	5/16"-18
Screw Size Decimal Equivalent	0.3125"
Thread Type	UNC
Thread Fit	Class 3A
Length	2-1/2"
Threading	Partially Threaded
Min. Thread Length	1-1/8"
Thread Spacing	Coarse
Head
Diameter	15/32"
Height	5/16"
Drive Size	1/4"
Tensile Strength	70,000 psi
Hardness	Rockwell B70
Material	304 Stainless Steel
RoHS 3 (2015/863/EU)	Compliant

Made from 304 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.

Coarse threads are the industry standard:choose these screws if you don’t know the pitch or threads per inch.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Socket Head Cap Screw Stainless Steel 5/16-18 * 2-1/2" [Cup Point] [Allen Drive] are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Socket Head Cap Screw Stainless Steel 5/16-18 * 2-1/2" [Cup Point] [Allen Drive]
Inventory Last Updated: Oct 02, 2023
