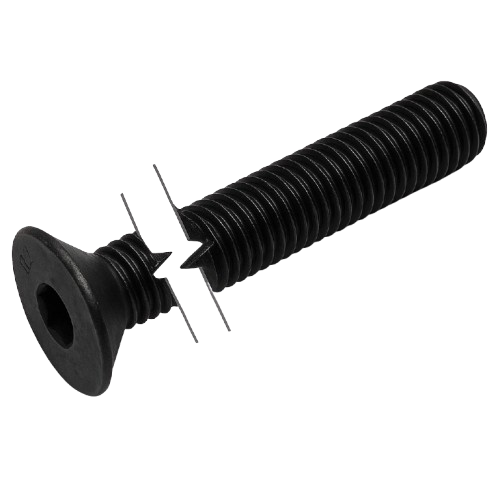

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M12 * 1.75 * 20mm Grade 12.9 [Allen Key]

Metric Flat Head Cap Screw Black-Oxide Alloy Steel Full Thread M12 * 1.75 * 20mm Grade 12.9 [Allen Key]

Regular price 1.14 $ CAD
Regular price Sale price 1.14 $ CAD
Sale Sold out
Title
Download

This flat head cap screw has a length of 20mm with a threading of M12 * 1.75mm [Fully Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7991 and comply with dimensional standards.

View full details

Specifications

Product Number VPFMT-12020
Nominal Diameter M12 * 1.75mm
Length 20mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M12 * 1.75mm
Fit Class 5g6g

Head Specifications

Type Flat
Profile Standard
Diameter 24.00mm
Height 6.50mm
Drive Style Allen Key
Drive Size 8.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 7991
