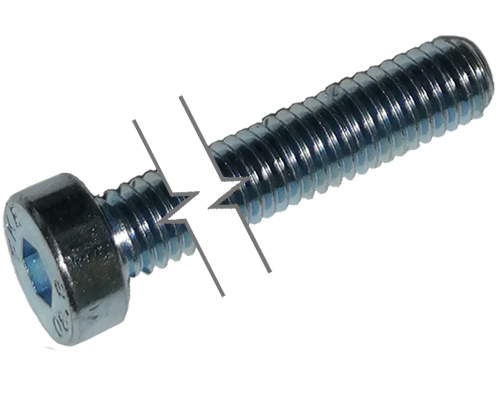

Metric Low Head Socket Head Cap Screw Zinc Plated Full Thread M6 * 1 * 16mm Grade 8.8 [Allen Key]

Metric Low Head Socket Head Cap Screw Zinc Plated Full Thread M6 * 1 * 16mm Grade 8.8 [Allen Key]

0.69 $ CAD
0.69 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This socket head cap screw has a length of 16mm with a threading of M6 * 1mm [Fully Threaded]. It is made of Zinc Plated and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 8.8 increases its strength against the pressure and has a tensile strength and hardness of 110,000 psi | Rockwell C21. Furthermore, it features a shear strenght of 66,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 7984 and comply with dimensional standards.

View full details

Specifications
Product Number VPCMTI88-06016-Z
Nominal Diameter M6 * 1mm
Length 16mm
Material and/or Plating Zinc Plated
System of Measurement Metric

Thread Specifications
Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M6 * 1mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Low
Diameter 10.00mm
Height 4.00mm
Drive Style Allen Key
Drive Size 5.00mm

Strength Specifications
Strength Grade/Class Grade 8.8
Tensile Strength | Hardness 110,000 psi | Rockwell C21
Shear Strength 66,000 psi
Classification DIN 7984
