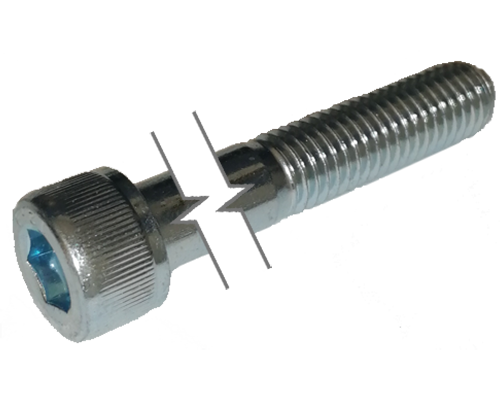

Metric Socket Head Cap Screw Zinc Plated Partial Thread M10 * 1.5 * 55mm Grade 8.8 [Allen Key]

Metric Socket Head Cap Screw Zinc Plated Partial Thread M10 * 1.5 * 55mm Grade 8.8 [Allen Key]

4.90 $ CAD
4.90 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This socket head cap screw has a length of 55mm with a threading of M10 * 1.5mm [Partially Threaded]. It is made of Zinc Plated and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 8.8 increases its strength against the pressure and has a tensile strength and hardness of 110,000 psi | Rockwell C21. Furthermore, it features a shear strenght of 66,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications
Product Number VPCM88-10055-Z
Nominal Diameter M10 * 1.5mm
Length 55mm
Material and/or Plating Zinc Plated
System of Measurement Metric

Thread Specifications
Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M10 * 1.5mm
Min. Length 32mm
Fit Class 5g6g

Head Specifications
Type Socket
Profile Standard
Diameter 16.00mm
Height 10.00mm
Drive Style Allen Key
Drive Size 8.00mm

Strength Specifications
Strength Grade/Class Grade 8.8
Tensile Strength | Hardness 110,000 psi | Rockwell C21
Shear Strength 66,000 psi
Classification DIN 912
