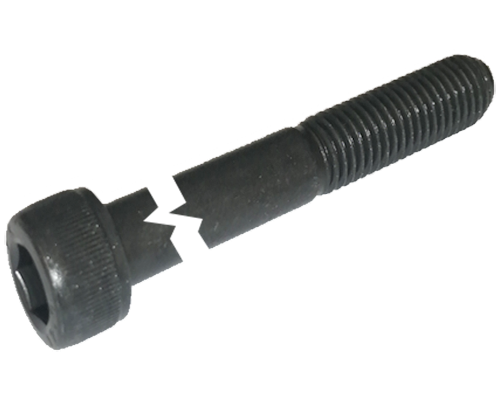

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread M22 * 2.5 * 230mm Grade 12.9 [Allen Key]

Metric Socket Head Cap Screw Black-Oxide Alloy Steel Partial Thread M22 * 2.5 * 230mm Grade 12.9 [Allen Key]

Regular price 4.28 $ CAD
Regular price Sale price 4.28 $ CAD
Sale Sold out
Quantity
Download

This socket head cap screw has a length of 230mm with a threading of M22 * 2.5mm [Partially Threaded]. It is made of Black-Oxide Alloy Steel and thus provides a mild resistance to corrosion in dry environments.

The cup point and the Grade 12.9 increases its strength against the pressure and has a tensile strength and hardness of 170,000 psi | Rockwell C39. Furthermore, it features a shear strenght of 102,000 psi.

ISO Metric Pitch | Coarse threads are an industry standard. These screws are classified as DIN 912 and comply with dimensional standards.

View full details

Specifications

Product Number VPCM-22230
Nominal Diameter M22 * 2.5mm
Length 230mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Partially Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M22 * 2.5mm
Min. Length 56mm
Fit Class 5g6g

Head Specifications

Type Socket
Profile Standard
Diameter 33.00mm
Height 22.00mm
Drive Style Allen Key
Drive Size 17.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 912
