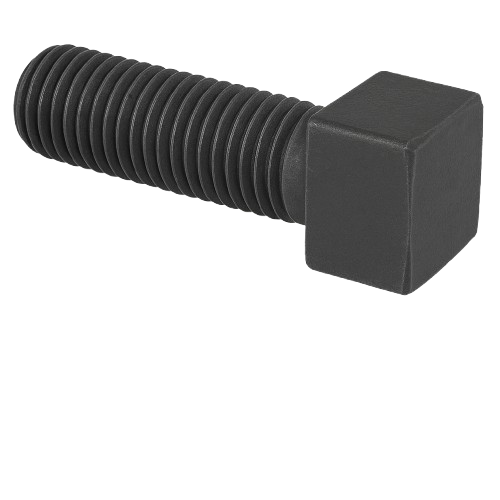

Square Head Screw Full Thread Black-Oxide Alloy Steel 5/16-18 * 3/4" Grade 8 [Cup Point] [External Square Drive]

RJM-Fasteners

0.53 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Price may change with quantity see chart under PROMOTIONS

Product Number	VPCA-02007
Material	Black-Oxide Alloy Steel
Thread Size	5/16"-18
Length	3/4"
Head
Width	5/16"
Height	1/4"
Screw Size Decimal Equivalent	0.313"
Hardness	Rockwell B80
Specifications Met	ASME B18.6.2
Thread Type	UNC
Thread Spacing	Coarse
Thread Fit	Class 2A
Thread Direction	Right Hand
Drive Style	External Square
Tip Type	Cup
Head Type	Square
System of Measurement	Inch
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant

Use these set screws for light duty holding. A square head allows them to be turned by hand, or fastened with a wrench when you need more torque. The cup point has a thin edge that digs into the contact surface for a secure hold. Length is measured from under the head.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Square Head Screw Full Thread Black-Oxide Alloy Steel 5/16-18 * 3/4" Grade 8 [Cup Point] [External Square Drive] are in stock.
