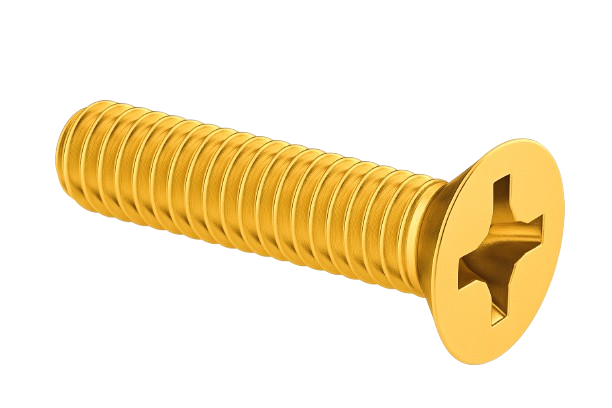

Flat Head Machine Screw Full Thread Brass 1/4-20 * 1" [Philips Drive]

Flat Head Machine Screw Full Thread Brass 1/4-20 * 1" [Philips Drive]

1.30 $ CAD
1.02 $ CAD 1.30 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



Brass screws are electrically conductive,nonmagnetic, and have good corrosion resistance. These are angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.




View full details

Specifications
Product Number VMBF-01010
Thread Size 1/4"-20
Length 1"
Threading Fully Threaded
Flat Head Profile Standard
Head Diameter 0.477"
Head Height 0.153"
Countersink Angle 82°
Drive Style Phillips
Drive Size No. 3
Material Brass
Hardness Rockwell B50
Tensile Strength 50,000 psi
Screw Size Decimal Equivalent 0.250"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS Compliant
