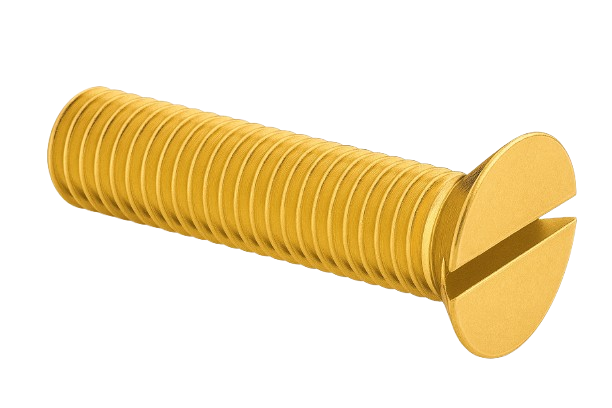

Flat Head Machine Screw Full Thread Brass 4-40 * 1/2" [Slotted Drive]

RJM-Fasteners

0.48 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Price may change with quantity see chart under PROMOTIONS

Product Number	VMBF-00405-S
Thread Size	4-40
Length	1/2"
Threading	Fully Threaded
Flat Head Profile	Standard
Head Diameter	0.212"
Head Height	0.067"
Countersink Angle	82°
Drive Style	Slotted
Drive Size	No. 1
Material	Brass
Hardness	Rockwell B50
Tensile Strength	50,000 psi
Screw Size Decimal Equivalent	0.112"
Thread Type	UNC
Thread Spacing	Coarse
Thread Fit	Class 2A
Thread Direction	Right Hand
Head Type	Flat
System of Measurement	Inch
Specifications Met	ASME B18.6.3
RoHS	Compliant

Brass screws are electrically conductive,nonmagnetic, and have good corrosion resistance. These are angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

The Flat Head Machine Screw Full Thread Brass 4-40 * 1/2" [Slotted Drive] are in Stock and ready to ship to your town.
