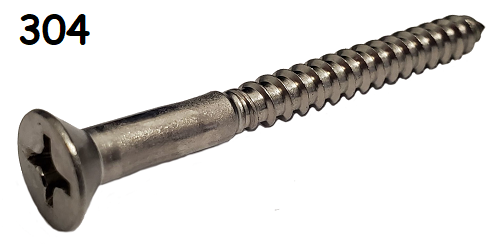

Flat Head Wood Screw Stainless Steel #12 * 3" [Philips Drive]

Flat Head Wood Screw Stainless Steel #12 * 3" [Philips Drive]

1.80 $ CAD
1.53 $ CAD 1.80 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

304 stainless steel screws have good chemical resistance and are a good choice for ACQ-treated (arsenic-free) lumber. All are beveled under the head for use in countersunk holes.They press threads into material for a tight,secure hold. To prevent splitting, drill a pilot hole slightly smaller than the screw. They may be mildly magnetic. Length is measured from the top of the head. The screw has a length of 3. This screw has a size of #12.




View full details

Specifications
Product Number VBFS-12030
Material 304 Stainless Steel
Screw Size No. 12
Screw Size Decimal Equivalent 0.216"
Length 3"

Head
Diameter 0.438"
Height 0.132"
Drive Size No. 3
Drive Style Phillips
Softwood Drill Bit Size 7/64"
Softwood Drill Bit Size Decimal Equivalent 0.109"
Hardwood Drill Bit Size 1/8"
Hardwood Drill Bit Size Decimal Equivalent 0.125"
Approximate Threads per Inch 11
Thread Direction Right Hand
Threading Partially Threaded
Min. Thread Length 0.864"
Tapping Method Thread Forming
Head Type Flat
Flat Head Profile Standard
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Wood
RoHS Compliant
