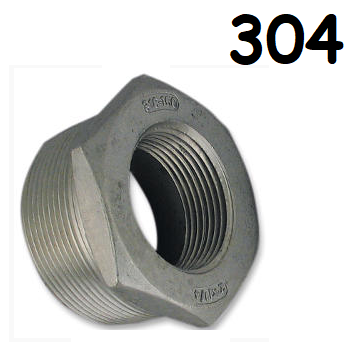

Low Pressure Bushing Adapter Pipe Fitting Stainless Steel 1/2-14 Male Reduce to 1/4-18 Femelle[NPT]

Low Pressure Bushing Adapter Pipe Fitting Stainless Steel 1/2-14 Male Reduce to 1/4-18 Femelle[NPT]

8.16 $ CAD
8.16 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking. 304 stainless steel fittings have very good corrosion resistance.

View full details

Specifications
Product Number REDUIS-05002-150NPT
For Use With Air, Natural Gas, Oil, Steam, Water
Shape Straight
Type Reducing Adapter, Bushing
Body Shape Hex
Material 304 Stainless Steel
Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Male × NPT Female

Pipe Size
From (Male) 1/2"
Reducing To (Female) 1/4-18"
Length 7/8"
Hex Width 7/8"
Maximum Pressure 150 psi @ 72° F
Maximum Steam Pressure 150 psi @ 360° F

For Pipe
Schedule 40
Material 304 Stainless Steel

For Flange
Class 150
Material 304 Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
