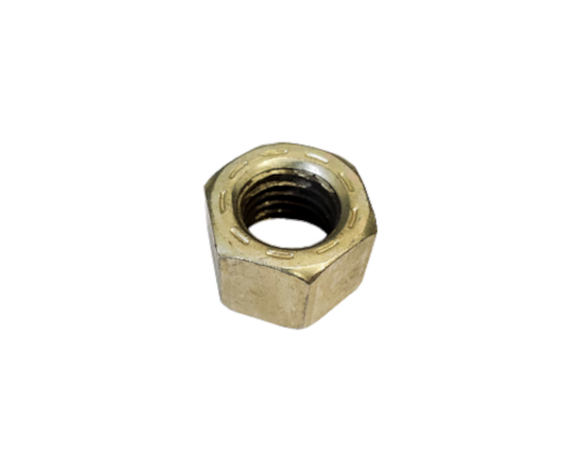

Imperial Hexagonal Nut Cadium Plated Fine Thread 7/16-20 Grade 12

RJM-Fasteners

1.60 $ CAD
Save 0.63 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	EF9-04000
Nominal Diameter	7/16-20
Material and/or Plating	Cadium Plated
System of Measurement	Imperial
Thread Specifications
Type	UNF \| Fine
Direction	Right Hand
Size	7/16-20
Fit	Class 5g6g
Nut Specification
Type	Hexagonal
Profile	Standard
Diameter	11/16"
Height	3/8"
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 12
Tensile Strength \| Hardness	180,000 psi \| Rockwell C38
Shear Strength	108,000 psi
Classification	ASME B18.2.2

This hexagonal nut fit a threading of 7/16-20. It is made of cadium plated and thus provide high resistance to corrosion in dry environments as well as medium corrosion resistance in wet environments.

The Grade 12 increases its strength against the pressure and has a tensile strength and hardness of 180,000 psi | Rockwell C38. Furthermore, it features a shear strength of 108,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

The Imperial Hexagonal Nut Cadium Plated Fine Thread 7/16-20 Grade 12 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Nut Cadium Plated Fine Thread 7/16-20 Grade 12
Inventory Last Updated: Dec 09, 2023

We Also Recommend

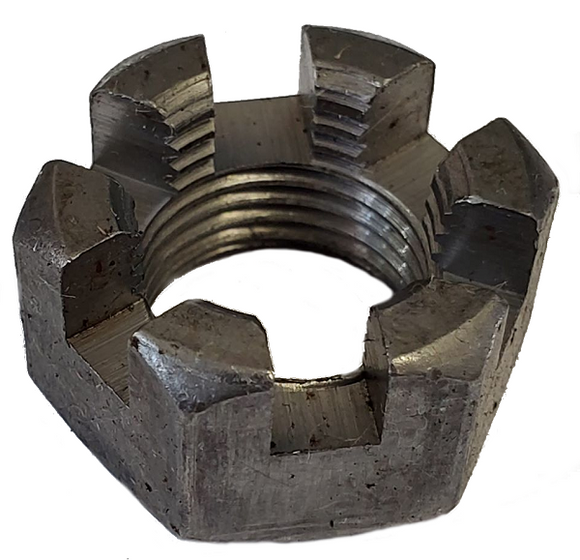

Castel Nut Fine Thread Black Steel 7/16-20 Grade 2

Choose Your Package

Conical Hexagonal Nut Fine Thread Zinc Plated 7/16-20 Grade 8

Choose Your Package

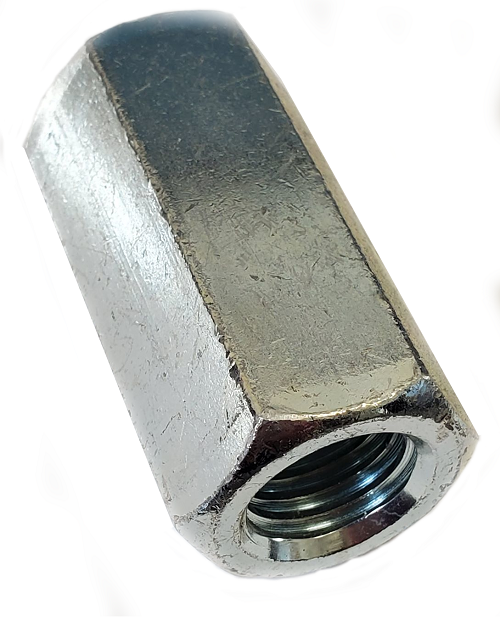

Coupling Hexagonal Nut Fine Thread Zinc Plated 7/16-20 * 1-1/4" Grade 5
