Imperial Hexagonal Nut Yellow Zinc Plated Fine Thread 7/8-14 Grade 8 data-zoom=

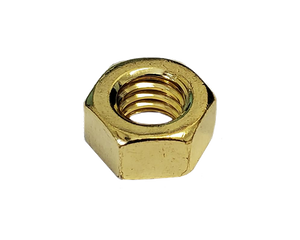

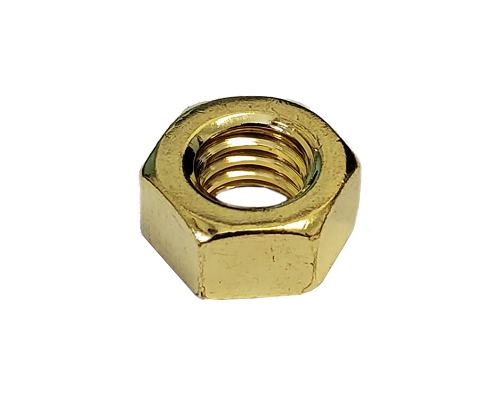

Imperial Hexagonal Nut Yellow Zinc Plated Fine Thread 7/8-14 Grade 8

Imperial Hexagonal Nut Yellow Zinc Plated Fine Thread 7/8-14 Grade 8

RJM-Fasteners

  • Save 2.59 $ CAD

Choose Your Package

Only -2 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number EF8-09000
Nominal Diameter 7/8-14
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial
Thread Specifications
Type UNF | Fine
Direction Right Hand
Size 7/8-14
Fit Class 5g6g
Nut Specification
Type Hexagonal
Profile Standard
Diameter 1-5/16"
Height 3/4"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.2.2

This hexagonal nut fit a threading of 7/8-14. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

The Imperial Hexagonal Nut Yellow Zinc Plated Fine Thread 7/8-14 Grade 8 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Nut Yellow Zinc Plated Fine Thread 7/8-14 Grade 8
Inventory Last Updated: Dec 09, 2023
