Hexagonal Nut Nylon Insert Fine Thread Zinc Plated 7/16-20 Grade 5

Hexagonal Nut Nylon Insert Fine Thread Zinc Plated 7/16-20 Grade 5

0.21 $ CAD
0.33 $ CAD 0.21 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

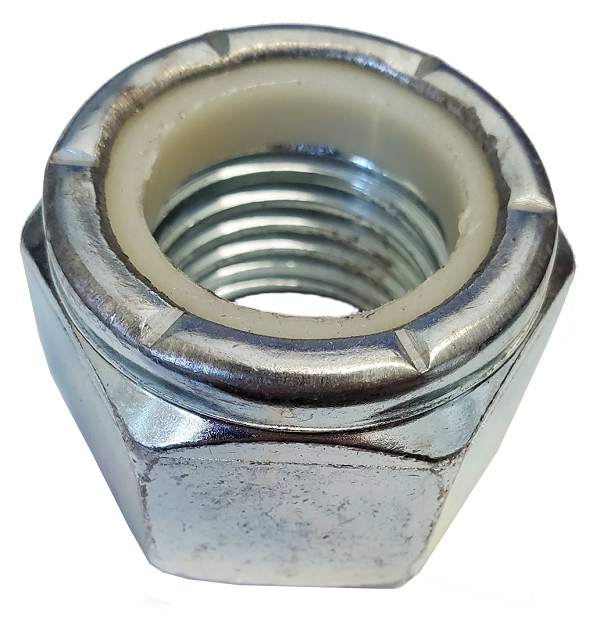

A nyloninsert grips the bolt to resist loosening without damaging threads. These locknuts are reusable, but their holding power lessens with each use. They are suitable for fastening most machinery and equipment. A White Nylon provides corrosion resistance in wet environments. The nuts have a thread of 7/16-20.




View full details

Specifications
Product Number EF5Y-04000
Material Steel
Finish Zinc Plated
Fastener Strength Grade/Class Grade 5
Thread Size 7/16"-20
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2B
Thread Direction Right Hand
Width 5/8"
Height 29/64"
Insert Maximum Temperature 220° F
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Nylon Insert
System of Measurement Inch
RoHS Compliant
