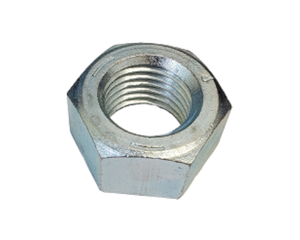

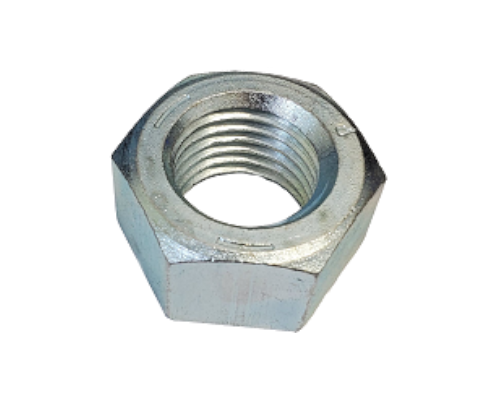

Imperial Hexagonal Nut Zinc Plated Fine Thread 5/16-24 Grade 5

RJM-Fasteners

0.39 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	EF5-02000
Nominal Diameter	5/16-24
Material and/or Plating	Zinc Plated
System of Measurement	Imperial
Thread Specifications
Type	UNF \| Fine
Direction	Right Hand
Size	5/16-24
Fit	Class 5g6g
Nut Specification
Type	Hexagonal
Profile	Standard
Diameter	1/2"
Height	17/64"
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 5
Tensile Strength \| Hardness	120,000 psi \| Rockwell C25
Shear Strength	72,000 psi
Classification	ASME B18.2.2

This hexagonal nut fit a threading of 5/16-24. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Nut Zinc Plated Fine Thread 5/16-24 Grade 5 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Nut Zinc Plated Fine Thread 5/16-24 Grade 5
Inventory Last Updated: Nov 30, 2023
