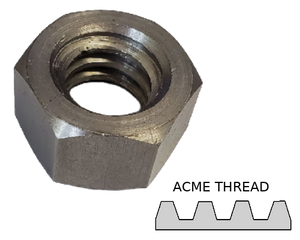

Imperial Hexagonal Nut ACME Thread 3/4-6 Grade 2

Imperial Hexagonal Nut ACME Thread 3/4-6 Grade 2

10.06 $ CAD
10.06 $ CAD
Sale Sold out
Shipping calculated at checkout.
Unity
Download



This hexagonal nut fit a threading of 3/4-6. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B70. Furthermore, it features a shear strength of 36,000 psi.

ACME threads are an industry standard. These nuts are classified as ASME B1.5 and comply with dimensional standards.

View full details

Specifications
Product Number EA-08000
Nominal Diameter 3/4-6
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Type ACME
Direction Right Hand
Size 3/4-6
Fit Class 2G

Nut Specification
Type Hexagonal
Profile Acme
Width 1-1/4"
Height 47/64"
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B70
Shear Strength 36,000 psi
Classification ASME B1.5
