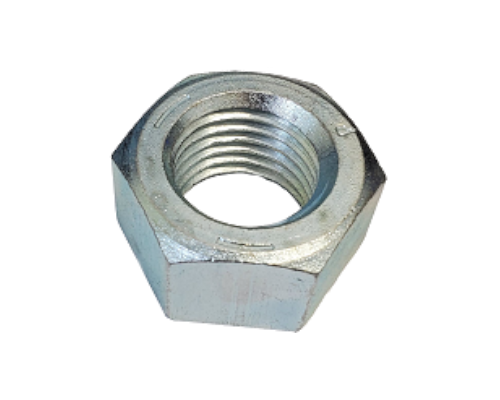

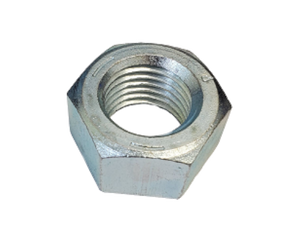

Imperial Hexagonal Nut Zinc Plated 5/8-11 Grade 5 data-zoom=
Imperial Hexagonal Nut Zinc Plated 5/8-11 Grade 5

Imperial Hexagonal Nut Zinc Plated 5/8-11 Grade 5

RJM-Fasteners

  • 0.41 $ CAD
  • Save 0.24 $ CAD

Choose Your Package

Only -63 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number E5-07000
Nominal Diameter 5/8-11
Material and/or Plating Zinc Plated
System of Measurement Imperial
Thread Specifications
Type UNC | Coarse
Direction Right Hand
Size 5/8-11
Fit Class 5g6g
Nut Specification
Type Hexagonal
Profile Standard
Diameter 15/16"
Height 35/64"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.2.2

This hexagonal nut fit a threading of 5/8-11. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These nuts are classified as ASME B18.2.2 and comply with dimensional standards.

The Imperial Hexagonal Nut Zinc Plated 5/8-11 Grade 5 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Nut Zinc Plated 5/8-11 Grade 5
Inventory Last Updated: Mar 29, 2024
