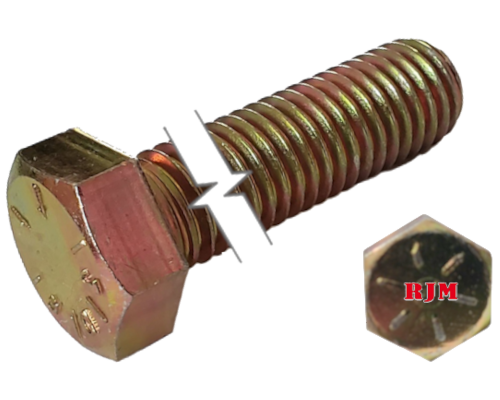

Imperial Hexagonal Bolt Fine And Full Thread 3/4-16 * 2-1/4" Grade 8 data-zoom=
Imperial Hexagonal Bolt Fine And Full Thread 3/4-16 * 2-1/4" Grade 8

Imperial Hexagonal Bolt Fine And Full Thread 3/4-16 * 2-1/4" Grade 8

RJM-Fasteners

  • 6.27 $ CAD
  • Save 1.37 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BTF8-08022
Nominal Diameter 3/4-16
Length 2-1/4"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 3/4-16
Shank Length 1-3/4
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 1-1/8"
Height 1/2"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 2-1/4" with a threading of 3/4-16 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Fine And Full Thread 3/4-16 * 2-1/4" Grade 8 are in stock.
