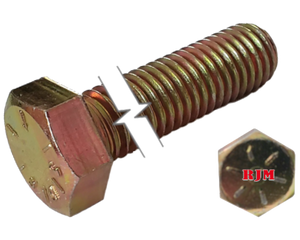

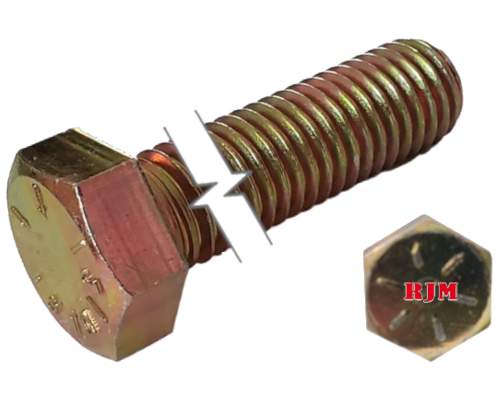

Imperial Hexagonal Bolt Fine And Full Thread 1/4-28 * 3/4" Grade 8

RJM-Fasteners

0.53 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BTF8-01007
Nominal Diameter	1/4-28
Length	3/4"
Material and/or Plating	Yellow Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNF \| Fine
Direction	Right Hand
Size	1/4-28
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Hexagonal
Profile	Standard
Width	7/16"
Height	5/32"
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 8
Tensile Strength \| Hardness	150,000 psi \| Rockwell C33
Shear Strength	90,000 psi
Classification	ASME B19.2.1 \| SAE J429

This hexagonal bolt has a length of 3/4" with a threading of 1/4-28 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

The Imperial Hexagonal Bolt Fine And Full Thread 1/4-28 * 3/4" Grade 8 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Fine And Full Thread 1/4-28 * 3/4" Grade 8
Inventory Last Updated: Dec 09, 2023
