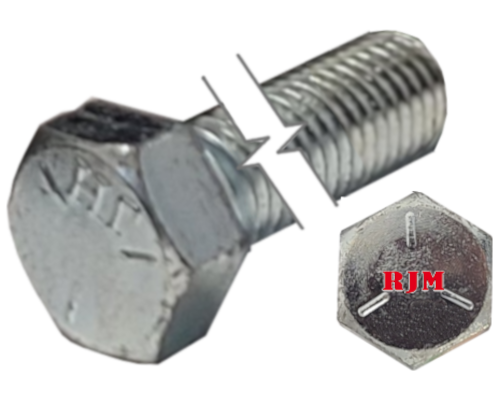

Imperial Hexagonal Bolt Fine And Full Thread 1/4-28 * 3/4" Grade 5

RJM-Fasteners

0.20 $ CAD
Save 0.14 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BTF5-01007
Nominal Diameter	1/4-28
Length	3/4"
Material and/or Plating	Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNF \| Fine
Direction	Right Hand
Size	1/4-28
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Hexagonal
Profile	Standard
Width	7/16"
Height	5/32"
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 5
Tensile Strength \| Hardness	120,000 psi \| Rockwell C25
Shear Strength	72,000 psi
Classification	ASME B19.2.1 \| SAE J429

This hexagonal bolt has a length of 3/4" with a threading of 1/4-28 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Fine And Full Thread 1/4-28 * 3/4" Grade 5 are in stock.
