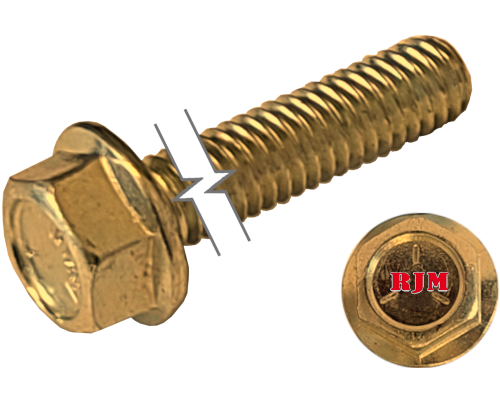

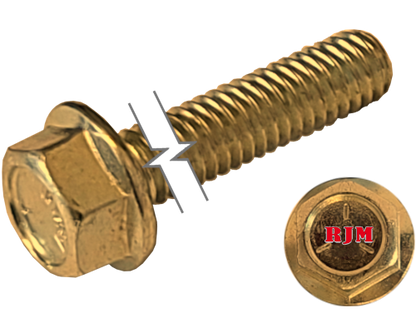

Imperial Flanged Hexagonal Bolt Full Thread 5/16-18 * 1" Grade 5

RJM-Fasteners

0.71 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BTE5-02010-Y
Nominal Diameter	5/16-18
Length	1"
Material and/or Plating	Yellow Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	5/16-18
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Hexagonal
Profile	Flanged
Width	1/2"
Height	7/32"
Flange Diameter	11/16
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 5
Tensile Strength \| Hardness	120,000 psi \| Rockwell C25
Shear Strength	72,000 psi
Classification	IFI 111 \| SAE J429

This hexagonal bolt has a length of 1" with a threading of 5/16-18 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as IFI 111 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Flanged Hexagonal Bolt Full Thread 5/16-18 * 1" Grade 5 are in stock.
