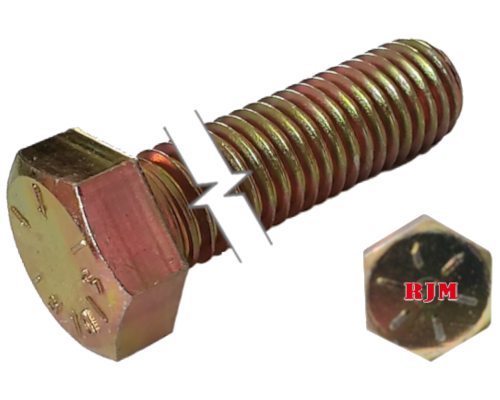

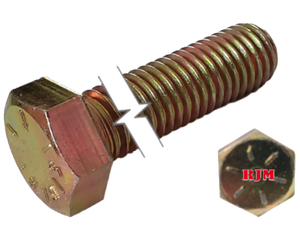

Imperial Hexagonal Bolt Full Thread  9/16-12 * 2" Grade 8 data-zoom=
Imperial Hexagonal Bolt Full Thread  9/16-12 * 2" Grade 8

Imperial Hexagonal Bolt Full Thread 9/16-12 * 2" Grade 8

RJM-Fasteners

  • 1.84 $ CAD
  • Save 0.28 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BT8-06020
Nominal Diameter 9/16-12
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 9/16-12
Shank Length 1-3/4
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 13/16"
Height 23/64"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 2" with a threading of 9/16-12 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

The Imperial Hexagonal Bolt Full Thread 9/16-12 * 2" Grade 8 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Full Thread 9/16-12 * 2" Grade 8
Inventory Last Updated: Mar 29, 2024
