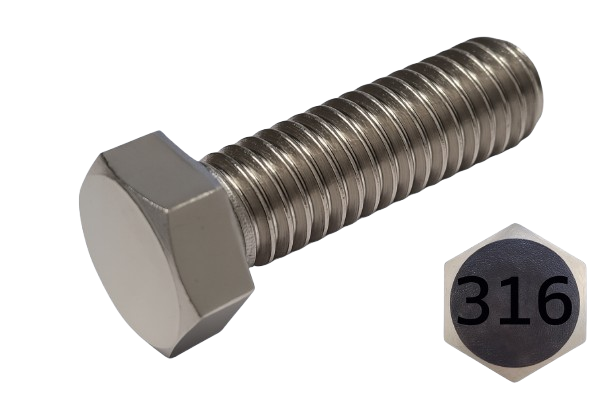

Imperial Hexagonal Bolt Fine And Full Thread 7/8-14 * 1-3/4"

Imperial Hexagonal Bolt Fine And Full Thread 7/8-14 * 1-3/4"

Regular price 16.71 $ CAD
Regular price Sale price 16.71 $ CAD
Sale Sold out
Title
Download


This hexagonal bolt has a length of 1-3/4" with a threading of 7/8-14 [Fully Threaded]. It is made of 316 stainless steel, provides very high resistance to corrosion in dry and wet environments. 316 Stainless Steel is also recommended for it's high corrosion resistance in salty environement.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BSTF3-09017
Nominal Diameter 7/8-14
Length 1-3/4"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications

Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 7/8-14
Shank Length 1-3/4
Fit Class 5g6g

Head Specification

Type Hexagonal
Profile Standard
Width 1-5/16"
Height 9/16"
Drive Style External Hex

Strength Specifications

Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
