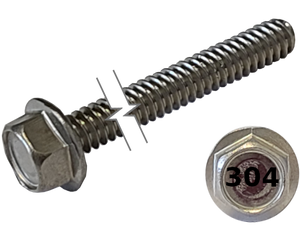

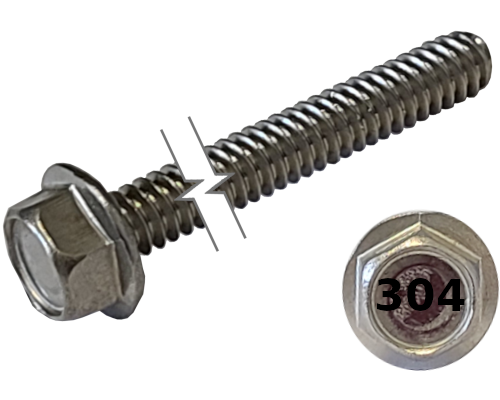

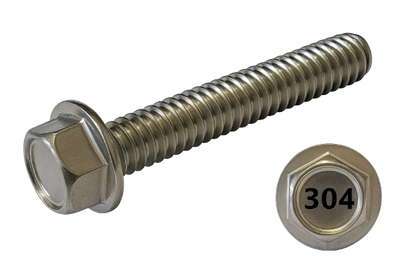

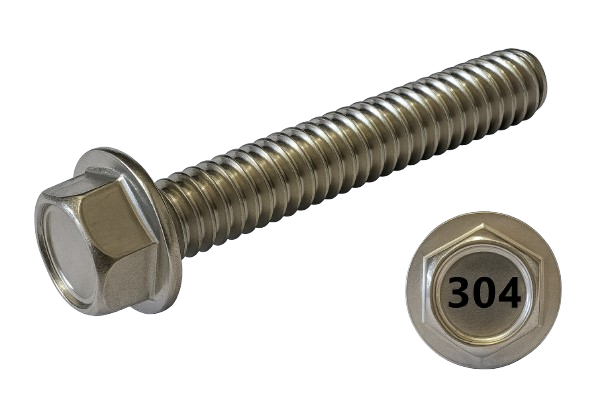

Imperial Flanged Hexagonal Bolt Full Thread 304 Stainless Steel 10-24 * 1-1/4"

RJM-Fasteners

1.46 $ CAD

Choose Your Package

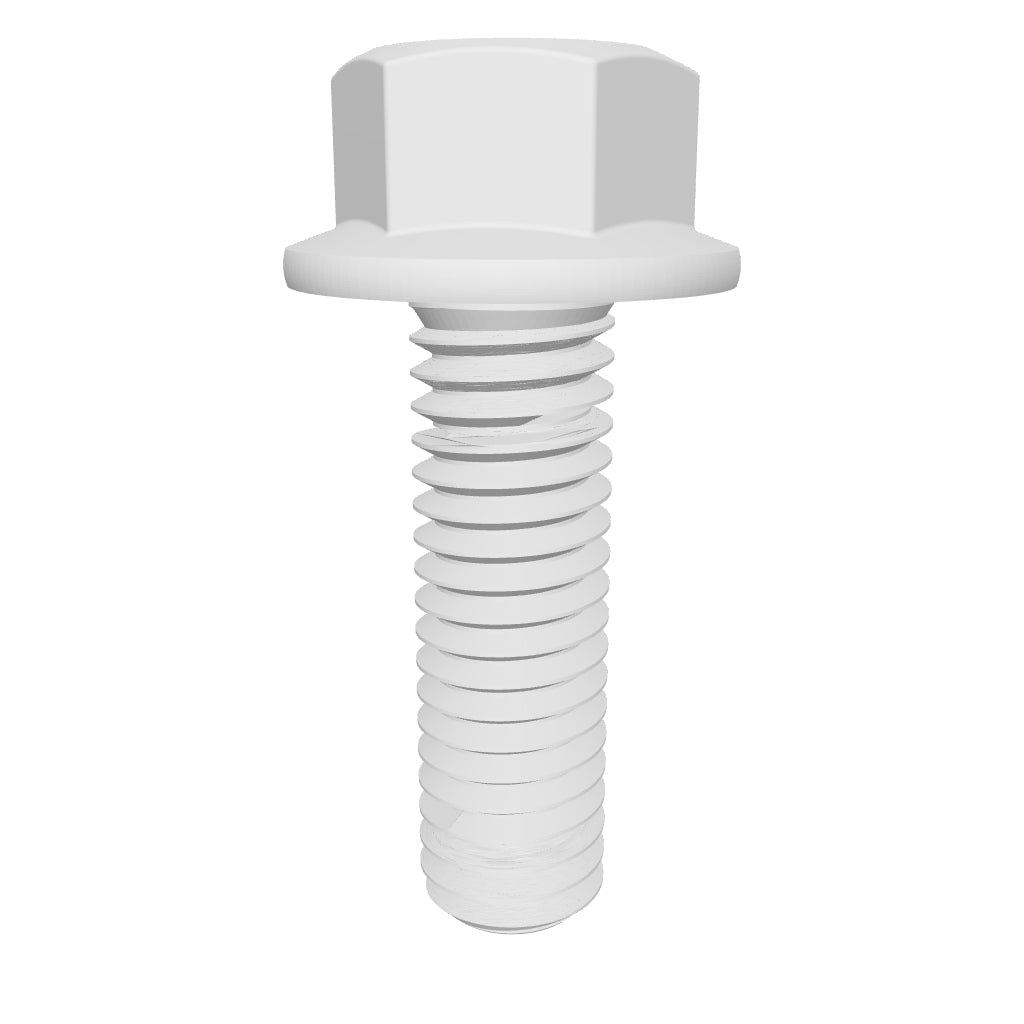

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BSTE-00812
Nominal Diameter	10-24
Length	1-1/4"
Material and/or Plating	304 Stainless Steel
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	10-24
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Hexagonal
Profile	Flanged
Width	5/16"
Height	1/8"
Flange Diameter	13/32
Drive Style	External Hex
Strength Specifications
Tensile Strength \| Hardness	75,000 psi \| Rockwell B79
Shear Strength	45,000 psi
Classification	IFI 111 \| SAE J429

This hexagonal bolt has a length of 1-1/4" with a threading of 10-24 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as IFI 111 | SAE J429 and comply with dimensional standards.

The Imperial Flanged Hexagonal Bolt Full Thread 304 Stainless Steel 10-24 * 1-1/4" are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Flanged Hexagonal Bolt Full Thread 304 Stainless Steel 10-24 * 1-1/4"
Inventory Last Updated: Sep 25, 2023
