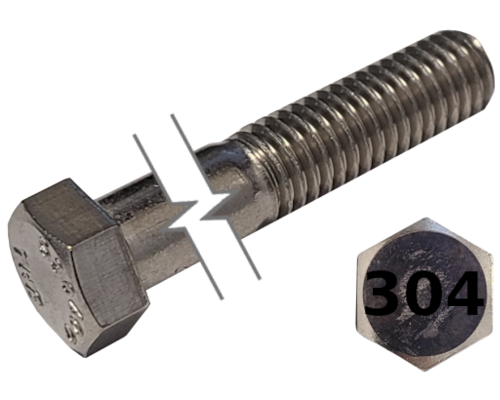

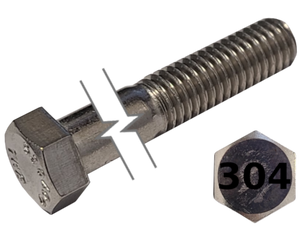

Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/2-13 * 3" data-zoom=

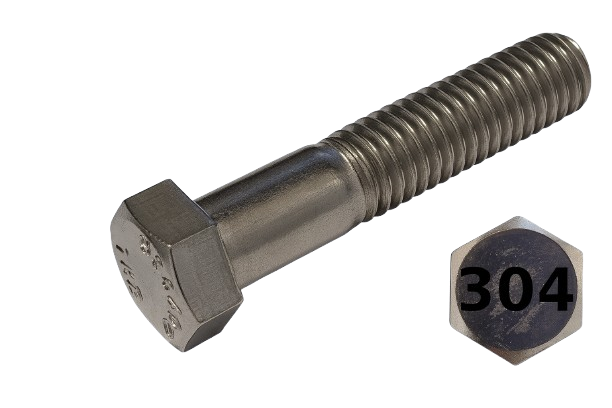

Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/2-13 * 3"

Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/2-13 * 3"

RJM-Fasteners

  • Save 0.69 $ CAD

Choose Your Package

Only -6 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BS-05030
Nominal Diameter 1/2-13
Length 3"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-1/4"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 3/4"
Height 11/32"
Drive Style External Hex
Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 3" with a threading of 1/2-13 [Partially Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

The Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/2-13 * 3" are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/2-13 * 3"
Inventory Last Updated: Sep 25, 2023
