Imperial Hexagonal Bolt Partial Thread 304 Stainless Steel 1/4-20 * 3-1/2"
Choose Your Package
|Material and/or Plating||304 Stainless Steel|
|System of Measurement||Imperial|
|Type||UNC | Coarse|
|Drive Style||External Hex|
|Tensile Strength | Hardness||75,000 psi | Rockwell B79|
|Shear Strength||45,000 psi|
|Classification||ASME B19.2.1 | SAE J429|

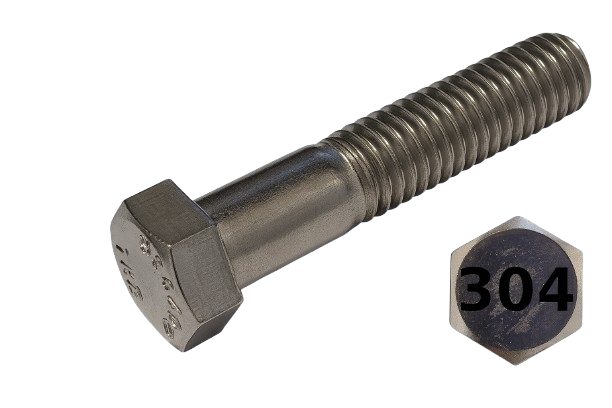

This hexagonal bolt has a length of 3-1/2" with a threading of 1/4-20 [Partially Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.
The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.
