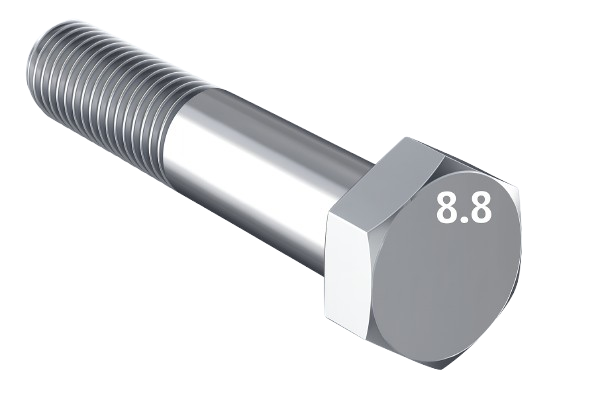

Metric Hexagonal Bolt Zinc Plated Full Thread M12 * 1.75 * 30mm Grade 8.8

Metric Hexagonal Bolt Zinc Plated Full Thread M12 * 1.75 * 30mm Grade 8.8

5.64 $ CAD
5.64 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) specifications. Length is measured from under the head. The bolts have a thread of M12*1.75 and a length of 30mm.

Zinc-plated steel screws resist corrosion in wet environments. Match the thread spacing of mating components. Coarse threads are the industry standard : choose these screws if you don’t know the pitch.

View full details

Specifications
Product Number BM-12030
Head Type Hex
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M12
Thread Pitch 1.75 mm
Thread Type Metric
Thread Fit Class 6h
Length 30
Threading Fully Threaded
Min. Thread Length 30 mm
Thread Spacing Coarse

Head
Width 19 mm
Height 7.5 mm
Fastener Strength Grade/Class Class 8.8
Material Steel
Finish Zinc Plated
Tensile Strength 110,000 psi
Hardness Rockwell C21
Specifications Met ISO 4014, DIN 931
RoHS 3 (2015/863/EU) Compliant
