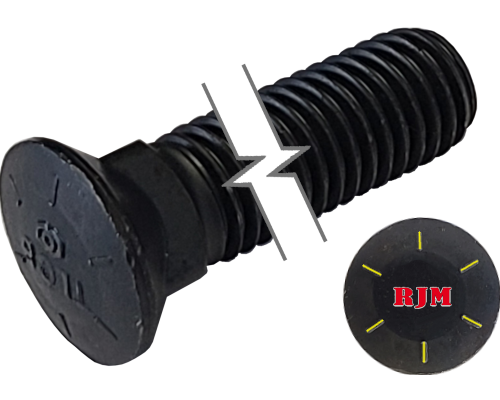

Imperial Plow Bolt Full Thread Plain Alloy Steel 5/8-11 * 2-1/4" Grade 8

RJM-Fasteners

3.80 $ CAD
Save 1.56 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BHT8-07022
Nominal Diameter	5/8-11
Length	2-1/4"
Material and/or Plating	Plain Alloy Steel
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	5/8-11
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Plow
Profile	Standard
Diameter	1-3/64"
Height	5/8"
Oval Top Height	3/32
Contersink Angle	82&deg
Neck Specifications
Form	Square
Width	41/64"
Strength Specifications
Strength Grade/Class	Grade 8
Tensile Strength \| Hardness	150,000 psi \| Rockwell C33
Shear Strength	90,000 psi
Classification	ASME B18.9 \| SAE J429

This plow bolt has a length of 2-1/4" with a threading of 5/8-11 [Fully Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Plow Bolt Full Thread Plain Alloy Steel 5/8-11 * 2-1/4" Grade 8 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Plow Bolt Full Thread Plain Alloy Steel 5/8-11 * 2-1/4" Grade 8
Inventory Last Updated: Nov 28, 2023
