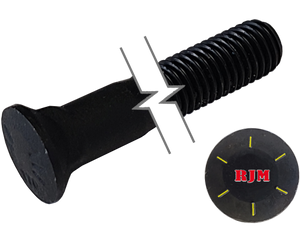

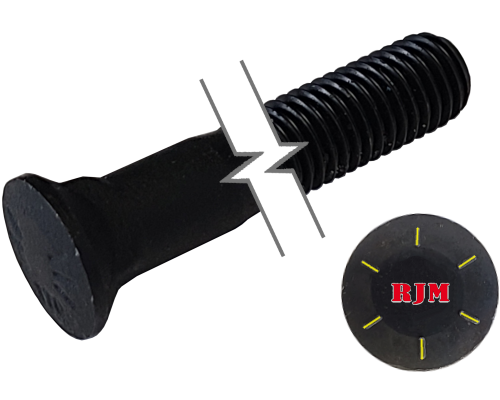

Imperial Plow Bolt Partial Thread Plain Alloy Steel 3/4-10 * 3-1/2" Grade 8

RJM-Fasteners

6.96 $ CAD
Save 0.03 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BH8-08035
Nominal Diameter	3/4-10
Length	3-1/2"
Material and/or Plating	Plain Alloy Steel
System of Measurement	Imperial
Thread Specifications
Threading	Partially Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	3/4-10
Shank Length	1-3/4
Shank Length	1-3/4
Min. Length	1-3/4"
Fit	Class 5g6g
Head Specification
Type	Plow
Profile	Standard
Diameter	1-13/64"
Height	11/16"
Oval Top Height	7/64
Contersink Angle	82&deg
Neck Specifications
Form	Square
Width	25/32"
Strength Specifications
Strength Grade/Class	Grade 8
Tensile Strength \| Hardness	150,000 psi \| Rockwell C33
Shear Strength	90,000 psi
Classification	ASME B18.9 \| SAE J429

This plow bolt has a length of 3-1/2" with a threading of 3/4-10 [Partially Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

The Imperial Plow Bolt Partial Thread Plain Alloy Steel 3/4-10 * 3-1/2" Grade 8 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Plow Bolt Partial Thread Plain Alloy Steel 3/4-10 * 3-1/2" Grade 8
Inventory Last Updated: Oct 03, 2023
