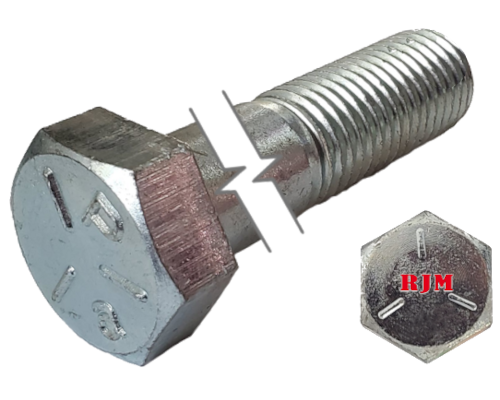

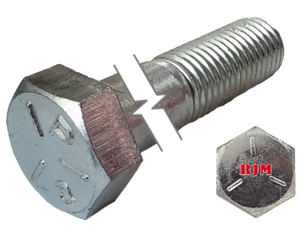

Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 3/8-24 * 1-1/2" Grade 5 data-zoom=
Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 3/8-24 * 1-1/2" Grade 5

Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 3/8-24 * 1-1/2" Grade 5

RJM-Fasteners

  • 0.86 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BF5-03015
Nominal Diameter 3/8-24
Length 1-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNF | Fine
Direction Right Hand
Size 3/8-24
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 9/16"
Height 1/4"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 1-1/2" with a threading of 3/8-24 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Fine And Partial Thread Zinc Plated 3/8-24 * 1-1/2" Grade 5 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca
