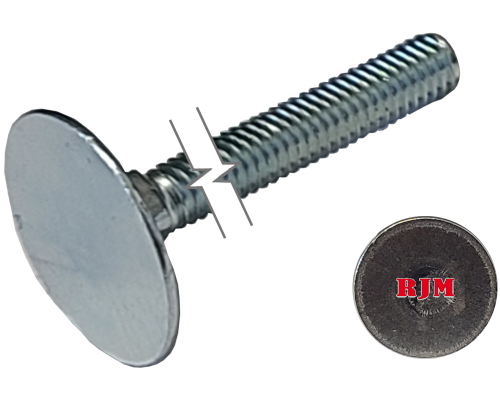

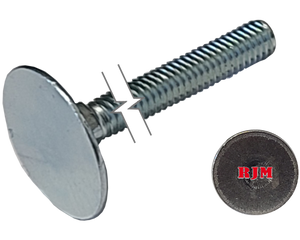

Imperial Elevator Bolt Full Thread Zinc Plated 3/8-16 * 1-1/2" Grade 2

Imperial Elevator Bolt Full Thread Zinc Plated 3/8-16 * 1-1/2" Grade 2

2.95 $ CAD
1.02 $ CAD 2.95 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This elevator bolt has a length of 1-1/2" with a threading of 3/8-16 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ANSI/ASME B 18.5 and comply with dimensional standards.

View full details

Specifications
Product Number BE-03015
Nominal Diameter 3/8-16
Length 1-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Elevator
Profile Standard
Diameter 1-5/16"
Height 9/64"

Neck Specifications
Form Square
Width 25/64"
Height 7/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ANSI/ASME B 18.5
