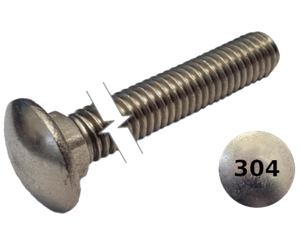

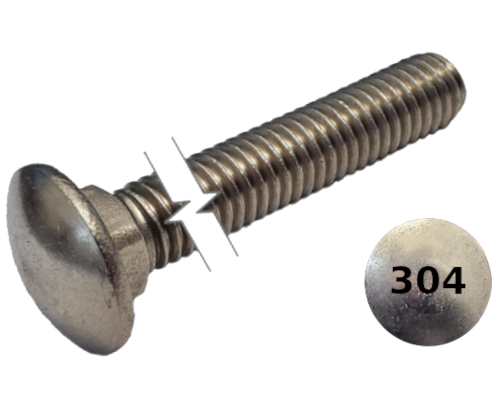

Imperial Carriage Bolt Full Thread 304 Stainless Steel 1/2-13 * 1"

RJM-Fasteners

  • 3.20 $ CAD

Choose Your Package

Only 0 left!

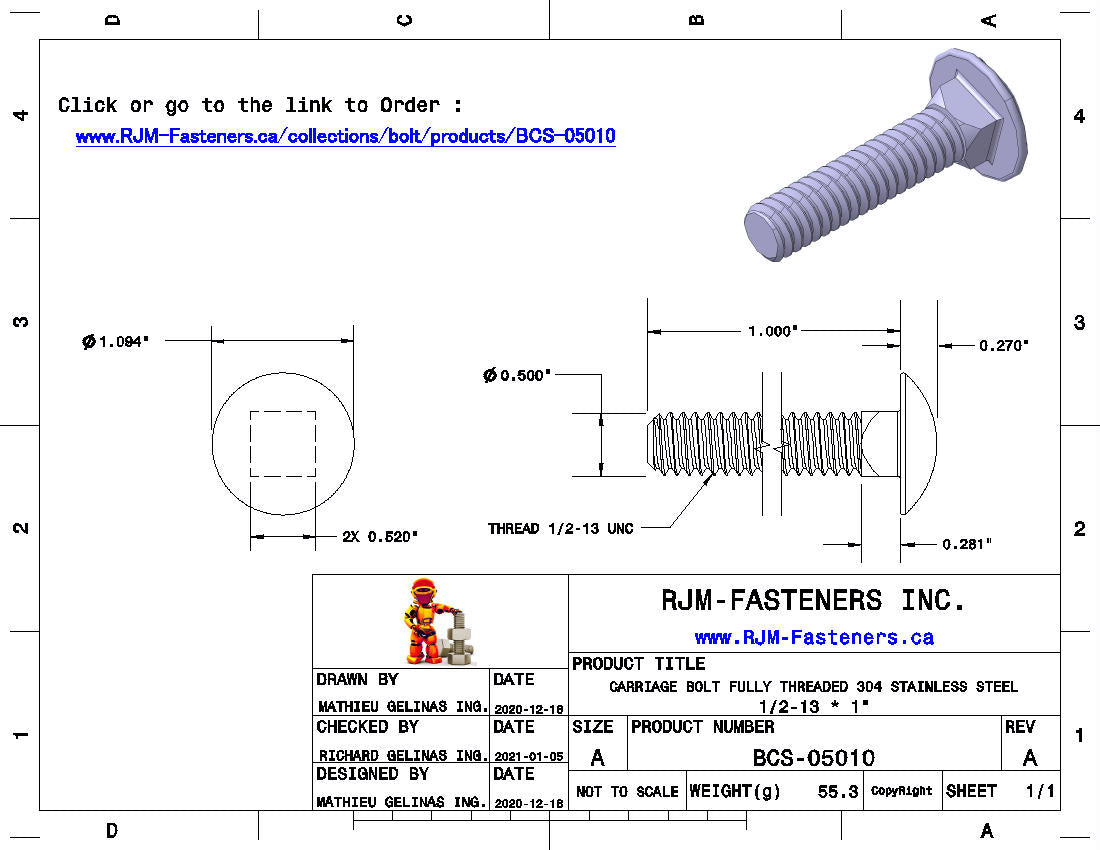

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BCS-05010
Nominal Diameter 1/2-13
Length 1"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial
Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Fit Class 5g6g
Head Specification
Type Carriage
Profile Standard
Diameter 1-6/64"
Height 17/64"
Drive Style None
Neck Specifications
Form Square
Width 33/64"
Height 9/32"
Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.5 | SAE J429

This carriage bolt has a length of 1" with a threading of 1/2-13 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Carriage Bolt Full Thread 304 Stainless Steel 1/2-13 * 1" are in stock.
