Imperial Carriage Bolt Full Thread 304 Stainless Steel 3/8-16 * 5" data-zoom=
Imperial Carriage Bolt Full Thread 304 Stainless Steel 3/8-16 * 5"

Imperial Carriage Bolt Full Thread 304 Stainless Steel 3/8-16 * 5"

RJM-Fasteners

Choose Your Package

Only 0 left!

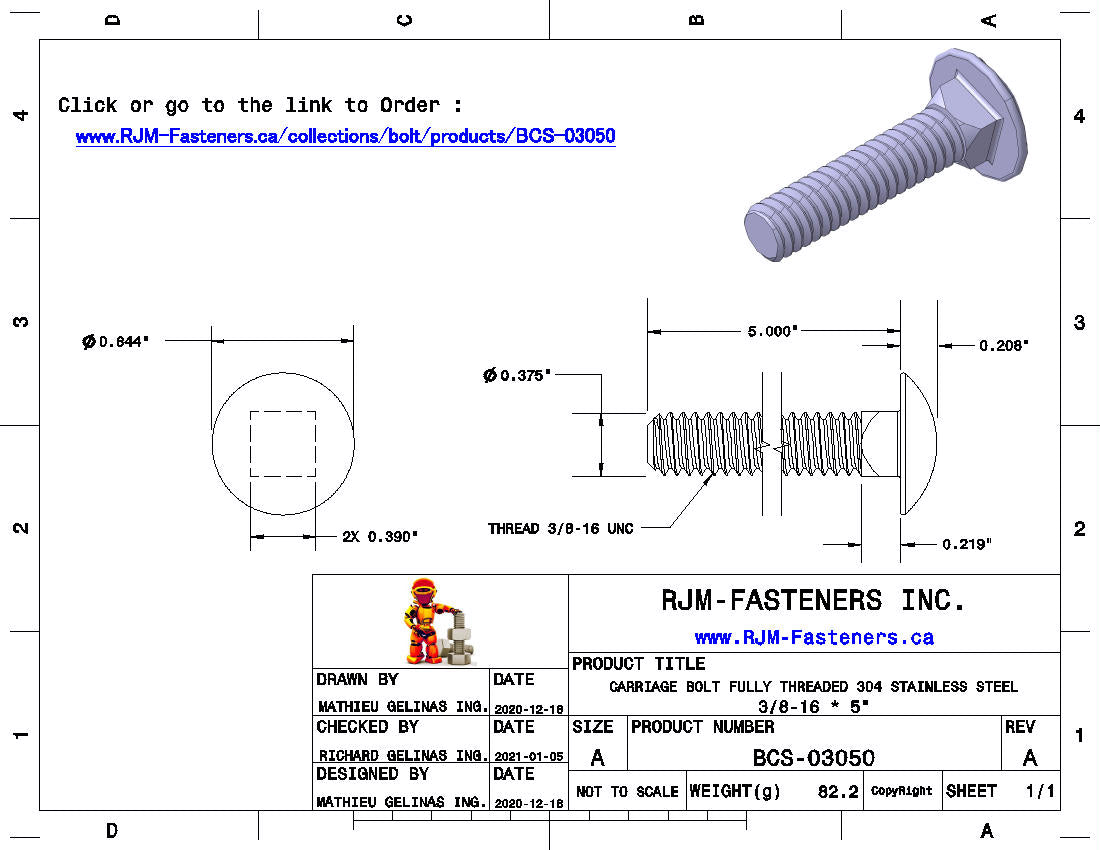

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BCS-03050
Nominal Diameter 3/8-16
Length 5"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial
Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Fit Class 5g6g
Head Specification
Type Carriage
Profile Standard
Diameter 27/32"
Height 9/32"
Drive Style None
Neck Specifications
Form Square
Width 25/64"
Height 7/32"
Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.5 | SAE J429

This carriage bolt has a length of 5" with a threading of 3/8-16 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

The Imperial Carriage Bolt Full Thread 304 Stainless Steel 3/8-16 * 5" are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Carriage Bolt Full Thread 304 Stainless Steel 3/8-16 * 5"
Inventory Last Updated: Dec 09, 2023
