Imperial Carriage Bolt Full Thread 304 Stainless Steel 5/16-18 * 6"
Choose Your Package

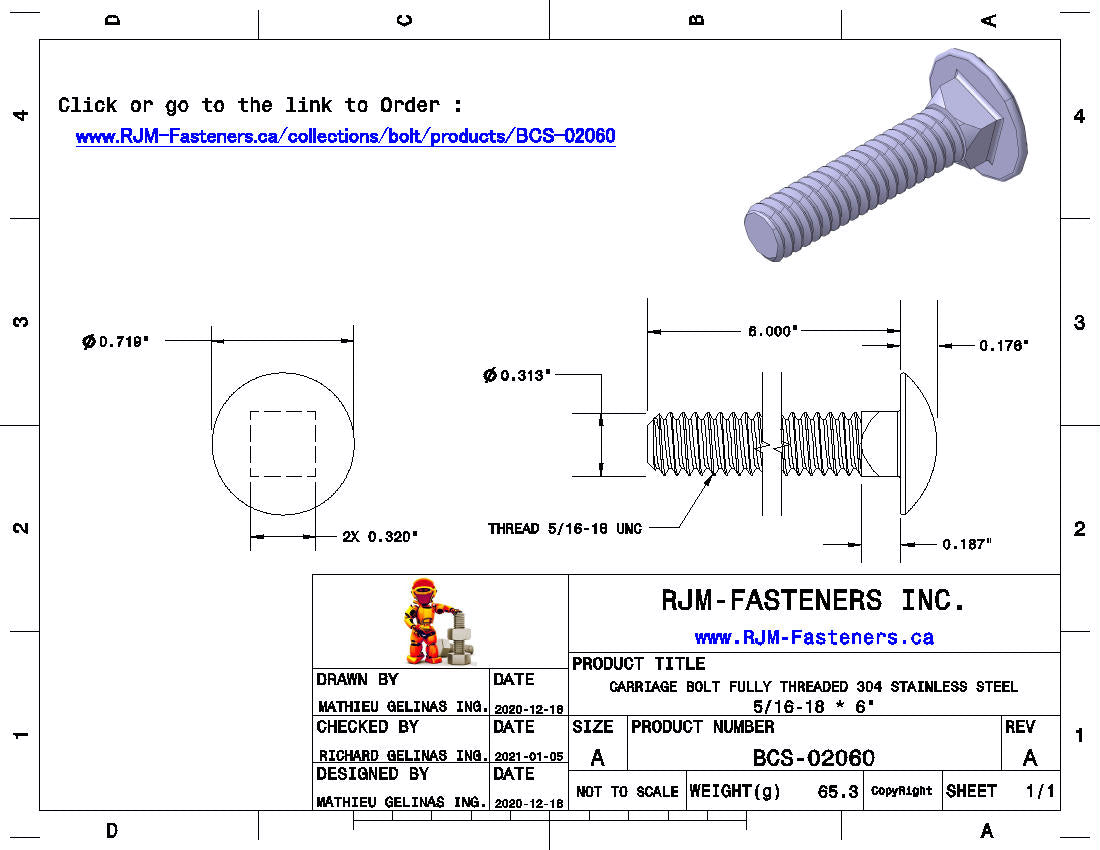

Technical Drawing
(Click to enlarge)
Description
| Product Number | BCS-02060 |
| Nominal Diameter | 5/16-18 |
| Length | 6" |
| Material and/or Plating | 304 Stainless Steel |
| System of Measurement | Imperial |
| Thread Specifications | |
| Threading | Fully Threaded |
| Type | UNC | Coarse |
| Direction | Right Hand |
| Size | 5/16-18 |
| Fit | Class 5g6g |
| Head Specification | |
| Type | Carriage |
| Profile | Standard |
| Diameter | 23/32" |
| Height | 11/64" |
| Drive Style | None |
| Neck Specifications | |
| Form | Square |
| Width | 5/16" |
| Height | 3/16" |
| Strength Specifications | |
| Tensile Strength | Hardness | 75,000 psi | Rockwell B79 |
| Shear Strength | 45,000 psi |
| Classification | ASME B18.5 | SAE J429 |
This carriage bolt has a length of 6" with a threading of 5/16-18 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.
The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.
If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca
Imperial Carriage Bolt Full Thread 304 Stainless Steel 5/16-18 * 6"
Inventory Last Updated: Mar 24, 2023
