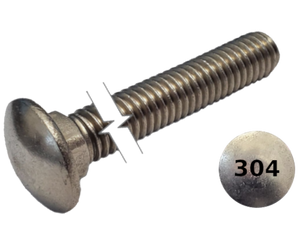

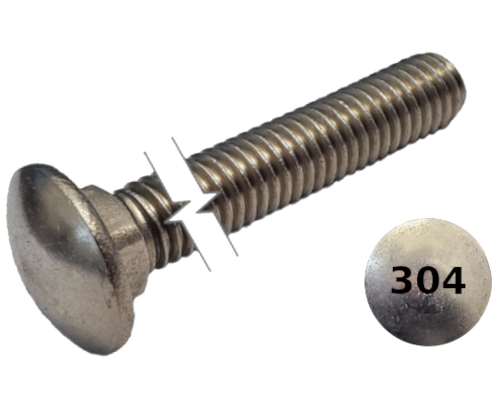

Imperial Carriage Bolt Full Thread 304 Stainless Steel 5/16-18 * 2"

RJM-Fasteners

2.00 $ CAD

Choose Your Package

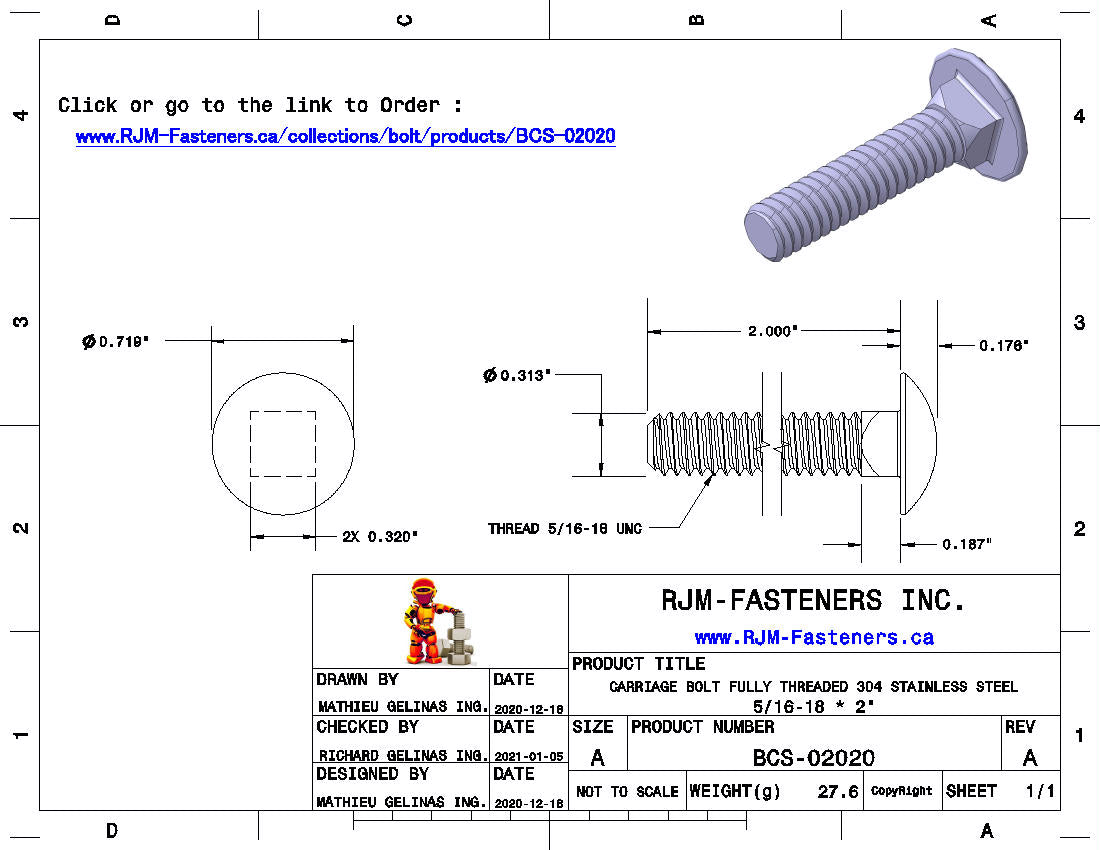

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BCS-02020
Nominal Diameter	5/16-18
Length	2"
Material and/or Plating	304 Stainless Steel
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	5/16-18
Fit	Class 5g6g
Head Specification
Type	Carriage
Profile	Standard
Diameter	23/32"
Height	11/64"
Drive Style	None
Neck Specifications
Form	Square
Width	5/16"
Height	3/16"
Strength Specifications
Tensile Strength \| Hardness	75,000 psi \| Rockwell B79
Shear Strength	45,000 psi
Classification	ASME B18.5 \| SAE J429

This carriage bolt has a length of 2" with a threading of 5/16-18 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Carriage Bolt Full Thread 304 Stainless Steel 5/16-18 * 2" are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Carriage Bolt Full Thread 304 Stainless Steel 5/16-18 * 2"
Inventory Last Updated: Oct 02, 2023
