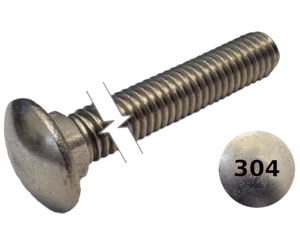

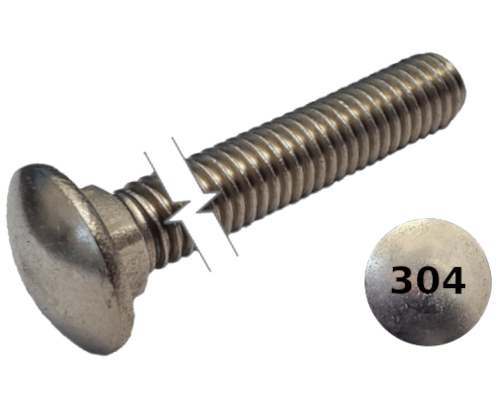

Imperial Carriage Bolt Full Thread 304 Stainless Steel  1/4-20 * 1-1/4" data-zoom=
Imperial Carriage Bolt Full Thread 304 Stainless Steel  1/4-20 * 1-1/4"

Imperial Carriage Bolt Full Thread 304 Stainless Steel 1/4-20 * 1-1/4"

RJM-Fasteners

  • 0.68 $ CAD

Choose Your Package

Only 0 left!

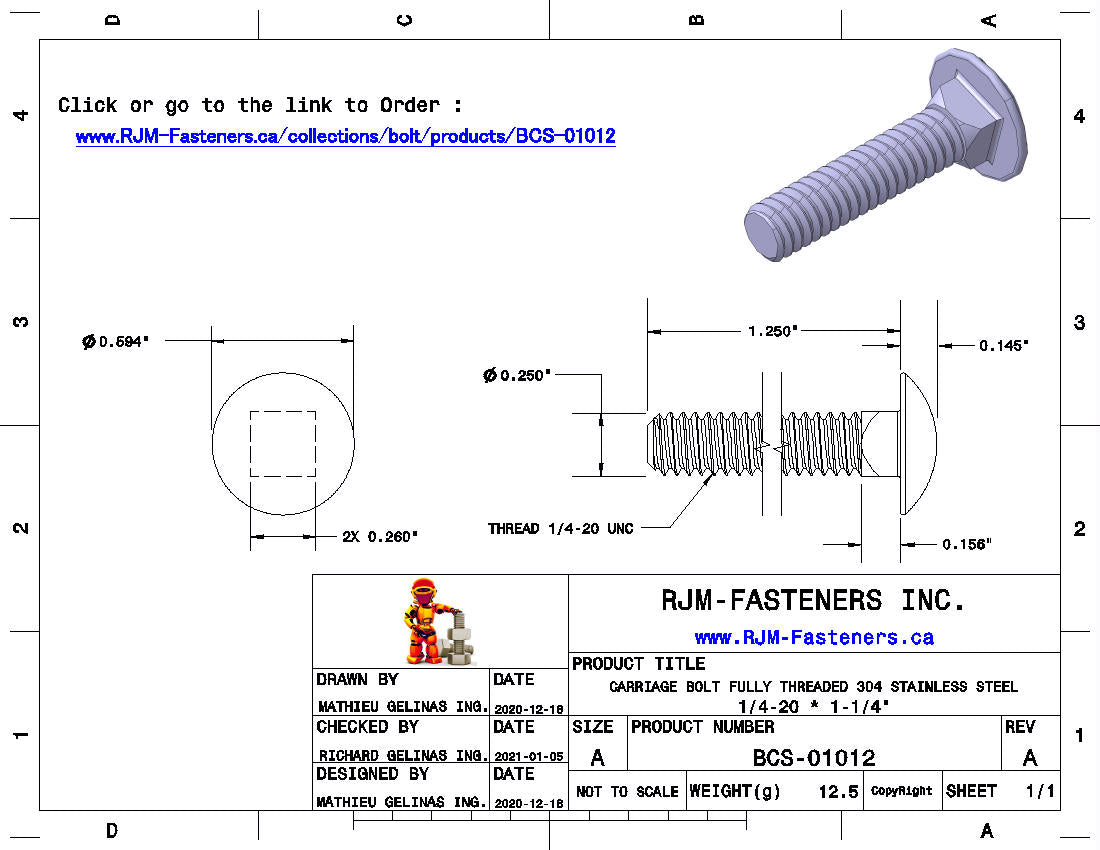

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number BCS-01012
Nominal Diameter 1/4-20
Length 1-1/4"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial
Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/4-20
Fit Class 5g6g
Head Specification
Type Carriage
Profile Standard
Diameter 19/32"
Height 9/64"
Drive Style None
Neck Specifications
Form Square
Width 1/4"
Height 5/32"
Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.5 | SAE J429

This carriage bolt has a length of 1-1/4" with a threading of 1/4-20 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

The Imperial Carriage Bolt Full Thread 304 Stainless Steel 1/4-20 * 1-1/4" are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Carriage Bolt Full Thread 304 Stainless Steel 1/4-20 * 1-1/4"
Inventory Last Updated: Mar 29, 2024
