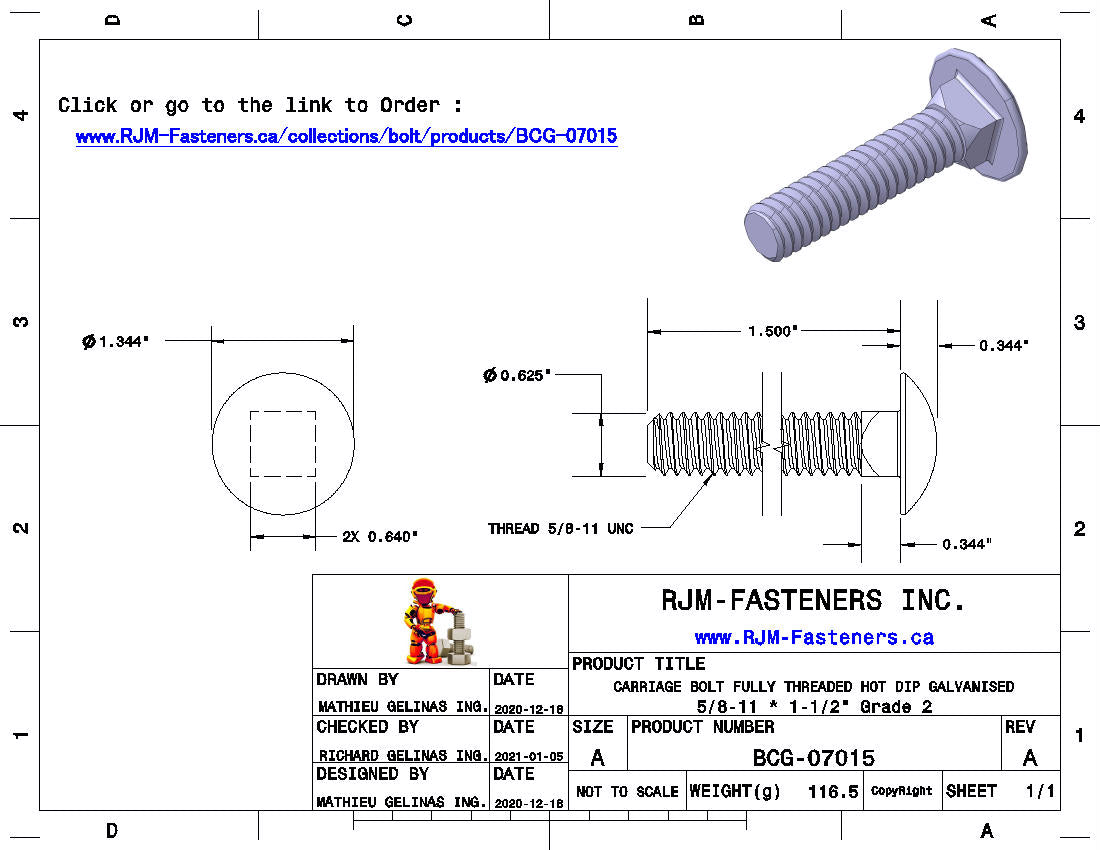

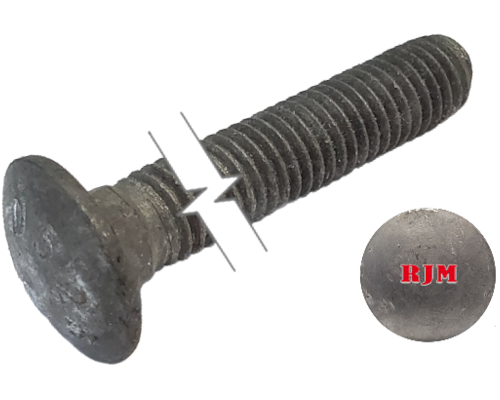

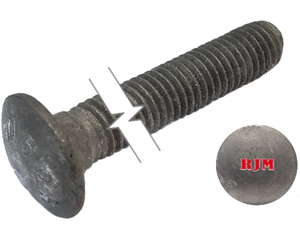

Imperial Carriage Bolt Dome Head Full Thread Galvanized 5/8-11 * 1-1/2" Grade 2
Choose Your Package
|Material and/or Plating||Galvanized|
|System of Measurement||Imperial|
|Type||UNC | Coarse|
|Type||Carriage | Dome|
|Strength Grade/Class||Grade 2|
|Tensile Strength | Hardness||60,000 psi | Rockwell B69.8|
|Shear Strength||36,000 psi|
|Classification||ASME B18.5 | SAE J429|
This carriage | dome bolt has a length of 1-1/2" with a threading of 5/8-11 [Fully Threaded]. It is galvanized and thus provide high resistance to corrosion in dry environments as well as medium corrosion resistance in wet environments.
The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.
