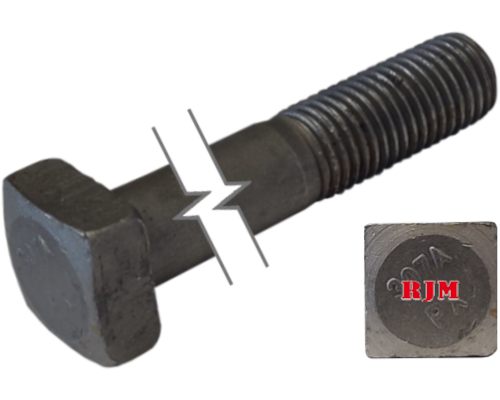

Imperial Square Bolt Partial Thread Plain Alloy Steel 5/16-18 * 2" Grade 2

Imperial Square Bolt Partial Thread Plain Alloy Steel 5/16-18 * 2" Grade 2

2.20 $ CAD
2.20 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download



This square bolt has a length of 2" with a threading of 5/16-18 [Partially Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASTM A307 and comply with dimensional standards.

View full details

Specifications
Product Number BCA-02020
Nominal Diameter 5/16-18
Length 2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 7/8"
Fit Class 5g6g

Head Specification
Type Square
Profile Standard
Width 1/2"
Height 13/64"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASTM A307
