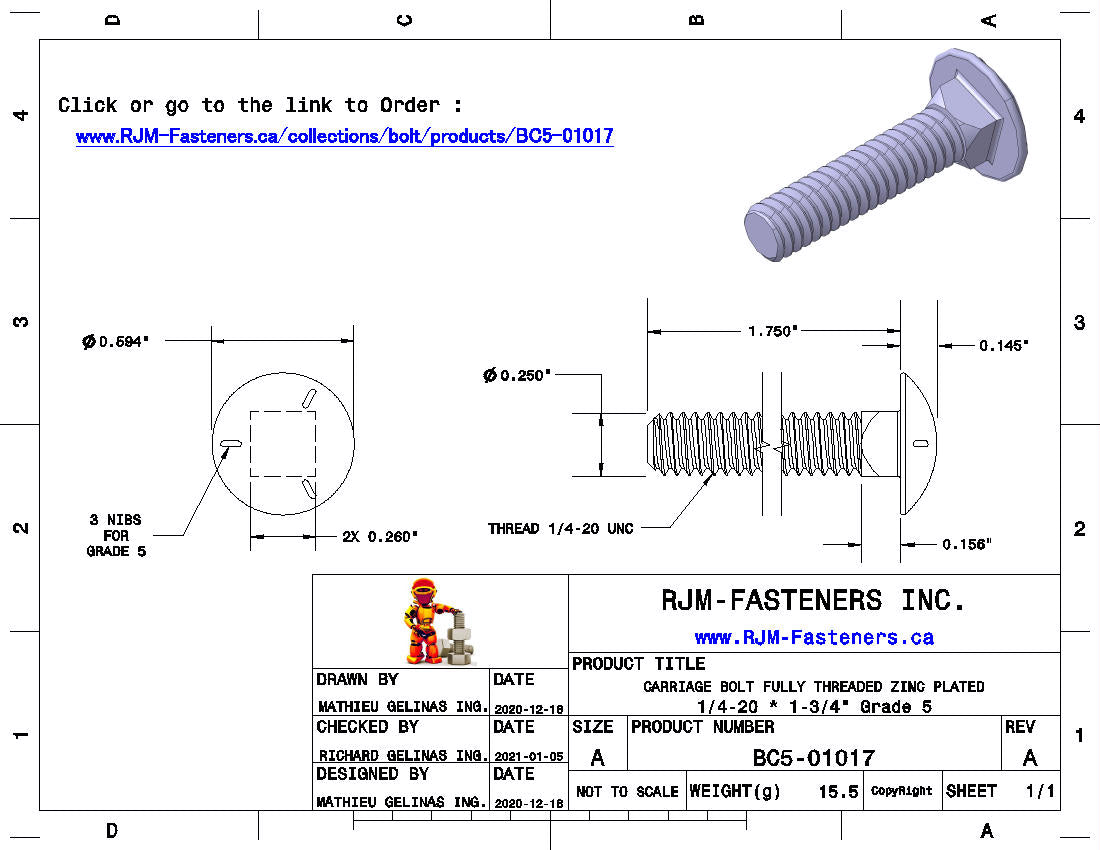

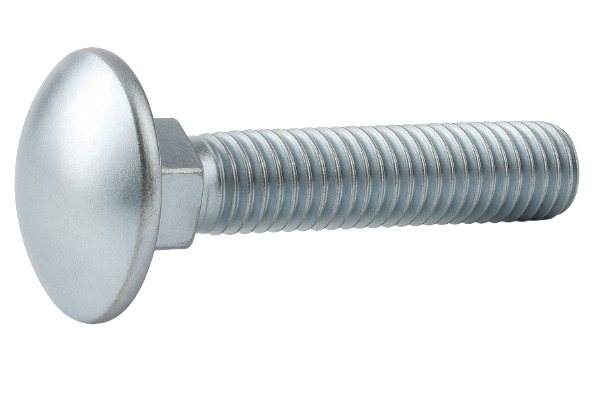

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 1/4-20 * 1-3/4" Grade 5
Choose Your Package
|Material and/or Plating||Zinc Plated|
|System of Measurement||Imperial|
|Type||UNC | Coarse|
|Type||Carriage | Dome|
|Strength Grade/Class||Grade 5|
|Tensile Strength | Hardness||120,000 psi | Rockwell C25|
|Shear Strength||72,000 psi|
|Classification||ASME B18.5 | SAE J429|
This carriage | dome bolt has a length of 1-3/4" with a threading of 1/4-20 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.
The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.
