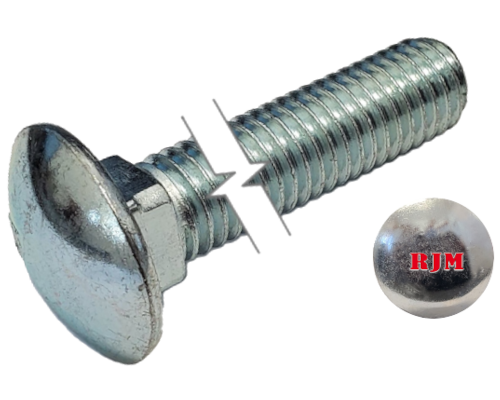

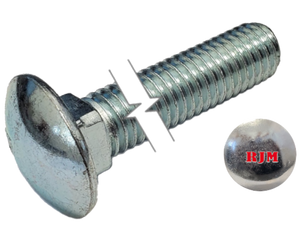

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 1/2-13 * 2" Grade 2

RJM-Fasteners

1.54 $ CAD

Choose Your Package

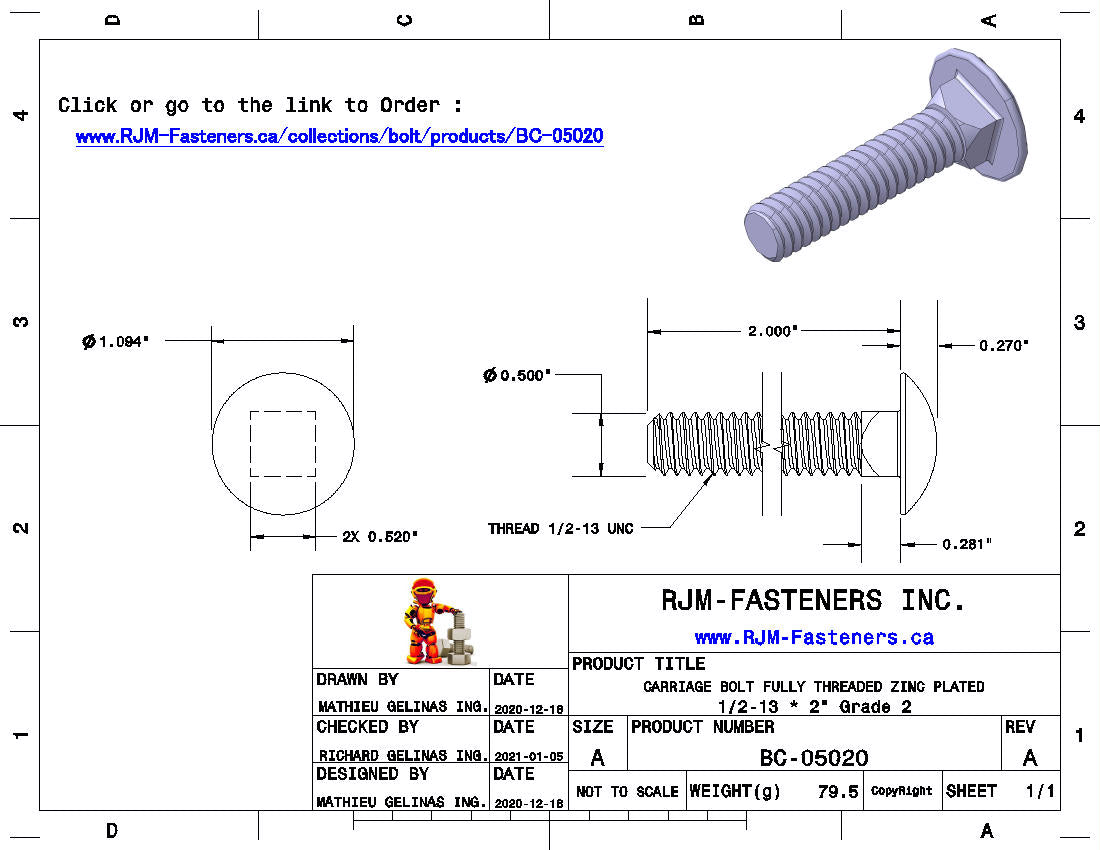

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BC-05020
Nominal Diameter	1/2-13
Length	2"
Material and/or Plating	Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	1/2-13
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Carriage \| Dome
Profile	Standard
Diameter	1-6/64"
Height	17/64"
Drive Style	None
Neck Specifications
Form	Square
Width	33/64"
Height	9/32"
Strength Specifications
Strength Grade/Class	Grade 2
Tensile Strength \| Hardness	60,000 psi \| Rockwell B69.8
Shear Strength	36,000 psi
Classification	ASME B18.5 \| SAE J429

This carriage | dome bolt has a length of 2" with a threading of 1/2-13 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

The Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 1/2-13 * 2" Grade 2 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 1/2-13 * 2" Grade 2
Inventory Last Updated: Dec 09, 2023
