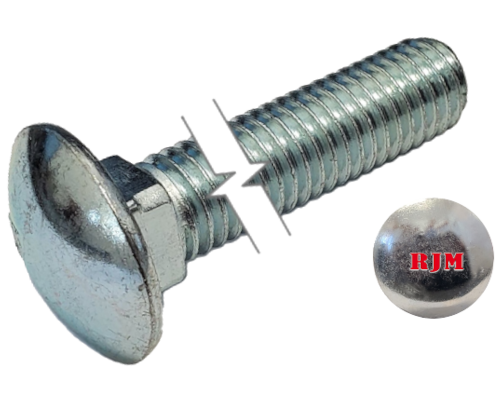

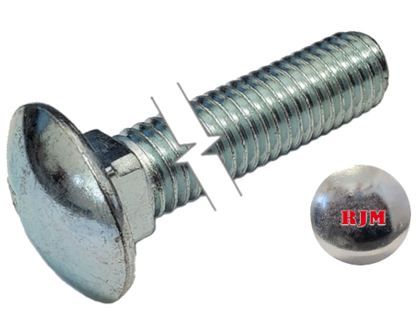

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 3/8-16 * 2-1/2" Grade 2

RJM-Fasteners

0.61 $ CAD
Save 0.11 $ CAD

Choose Your Package

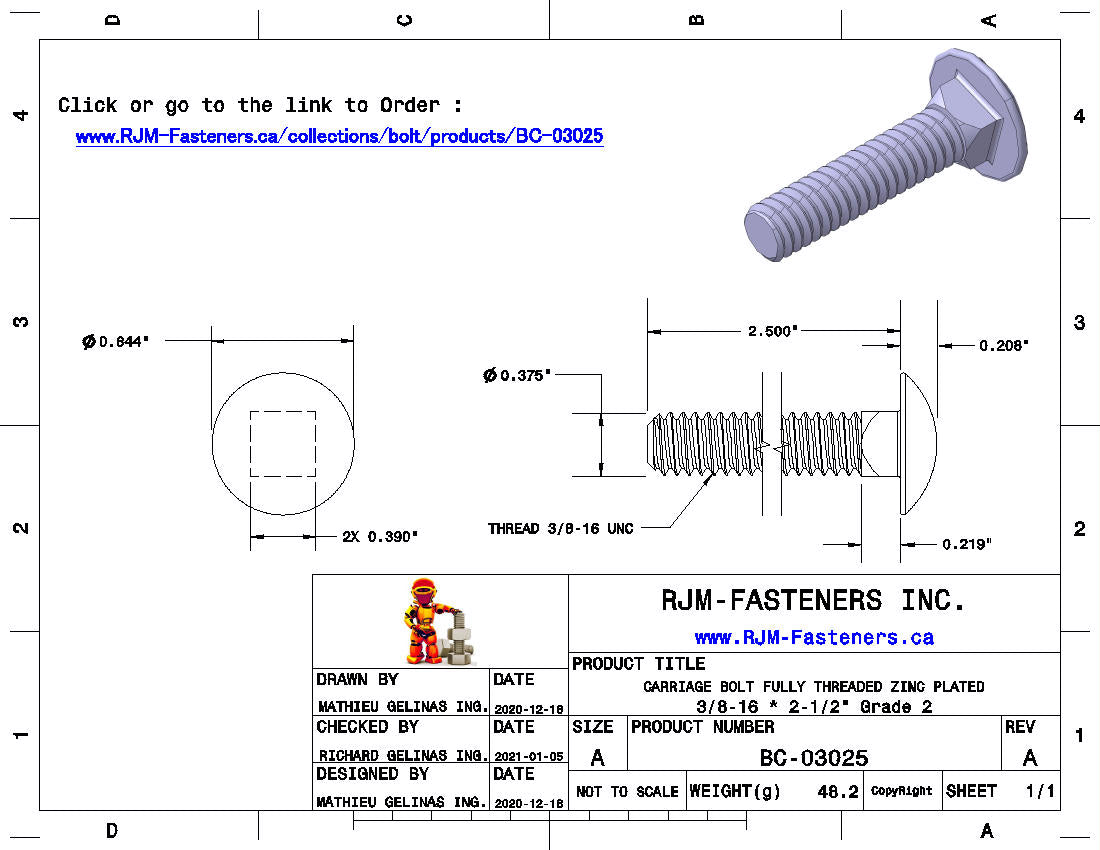

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	BC-03025
Nominal Diameter	3/8-16
Length	2-1/2"
Material and/or Plating	Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Fully Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	3/8-16
Shank Length	1-3/4
Fit	Class 5g6g
Head Specification
Type	Carriage \| Dome
Profile	Standard
Diameter	27/32"
Height	9/32"
Drive Style	None
Neck Specifications
Form	Square
Width	25/64"
Height	7/32"
Strength Specifications
Strength Grade/Class	Grade 2
Tensile Strength \| Hardness	60,000 psi \| Rockwell B69.8
Shear Strength	36,000 psi
Classification	ASME B18.5 \| SAE J429

This carriage | dome bolt has a length of 2-1/2" with a threading of 3/8-16 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 3/8-16 * 2-1/2" Grade 2 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Carriage Bolt Dome Head Full Thread Zinc Plated 3/8-16 * 2-1/2" Grade 2
Inventory Last Updated: Nov 28, 2023
