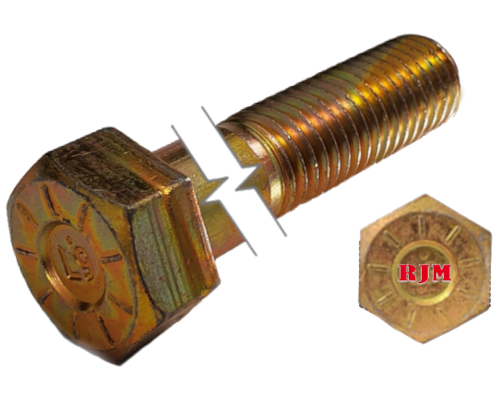

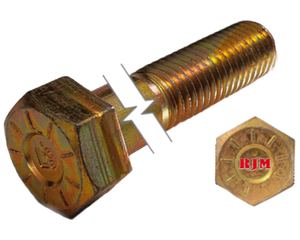

Imperial Hexagonal Bolt Partial Thread Cadium Plated 7/16-14 * 4" Grade 12
Choose Your Package
|Material and/or Plating||Cadium Plated|
|System of Measurement||Imperial|
|Type||UNC | Coarse|
|Drive Style||External Hex|
|Strength Grade/Class||Grade 12|
|Tensile Strength | Hardness||180,000 psi | Rockwell C38|
|Shear Strength||108,000 psi|
|Classification||ASME B19.2.1 | SAE J429|
This hexagonal bolt has a length of 4" with a threading of 7/16-14 [Partially Threaded]. It is made of cadium plated and thus provide high resistance to corrosion in dry environments as well as medium corrosion resistance in wet environments.
The Grade 12 increases its strength against the pressure and has a tensile strength and hardness of 180,000 psi | Rockwell C38. Furthermore, it features a shear strength of 108,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.
