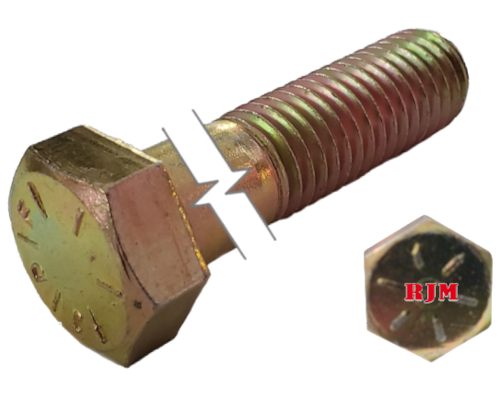

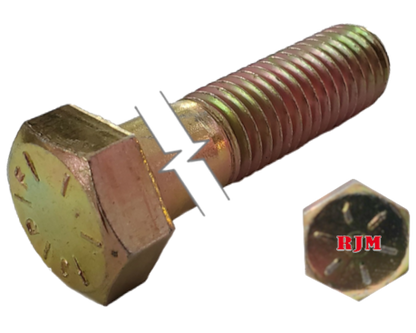

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated  1-1/2-6 * 8" Grade 8 data-zoom=
Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated  1-1/2-6 * 8" Grade 8

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 1-1/2-6 * 8" Grade 8

RJM-Fasteners

  • 83.68 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number B8-15080
Nominal Diameter 1-1/2-6
Length 8"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1-1/2-6
Min. Length 3-1/4"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 2-1/4"
Height 15/16"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 8" with a threading of 1-1/2-6 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 1-1/2-6 * 8" Grade 8 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 1-1/2-6 * 8" Grade 8
Inventory Last Updated: Dec 08, 2022
