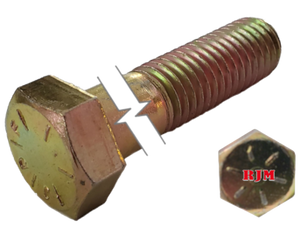

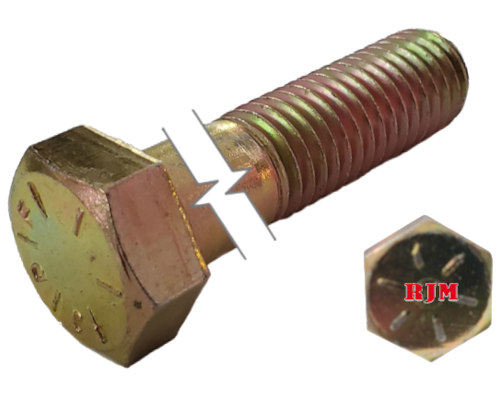

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated  7/8-9 * 9" Grade 8 data-zoom=
Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated  7/8-9 * 9" Grade 8

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 7/8-9 * 9" Grade 8

RJM-Fasteners

  • 19.05 $ CAD
  • Save 5.93 $ CAD

Choose Your Package

Only -1 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number B8-09090
Nominal Diameter 7/8-9
Length 9"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 7/8-9
Min. Length 2-1/4"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 1-5/16"
Height 9/16"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 9" with a threading of 7/8-9 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

The Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 7/8-9 * 9" Grade 8 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 7/8-9 * 9" Grade 8
Inventory Last Updated: Mar 29, 2024
