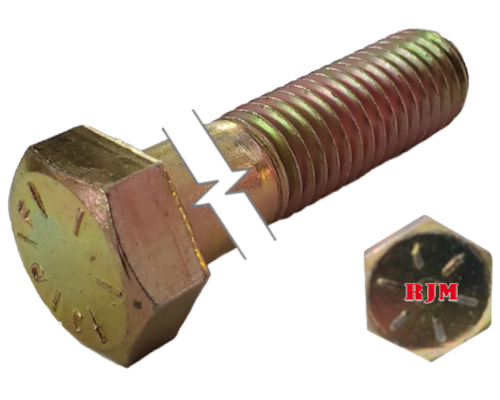

Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 1/4-20 * 1-1/4" Grade 8
Choose Your Package
Description
Product Number | B8-01012 |
Nominal Diameter | 1/4-20 |
Length | 1-1/4" |
Material and/or Plating | Yellow Zinc Plated |
System of Measurement | Imperial |
Thread Specifications | |
Threading | Partially Threaded |
Type | UNC | Coarse |
Direction | Right Hand |
Size | 1/4-20 |
Min. Length | 3/4" |
Fit | Class 5g6g |
Head Specification | |
Type | Hexagonal |
Profile | Standard |
Width | 7/16" |
Height | 5/32" |
Drive Style | External Hex |
Strength Specifications | |
Strength Grade/Class | Grade 8 |
Tensile Strength | Hardness | 150,000 psi | Rockwell C33 |
Shear Strength | 90,000 psi |
Classification | ASME B19.2.1 | SAE J429 |
This hexagonal bolt has a length of 1-1/4" with a threading of 1/4-20 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.
The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.
UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.
The Imperial Hexagonal Bolt Partial Thread Yellow Zinc Plated 1/4-20 * 1-1/4" Grade 8 are in Stock and ready to ship to your town.
