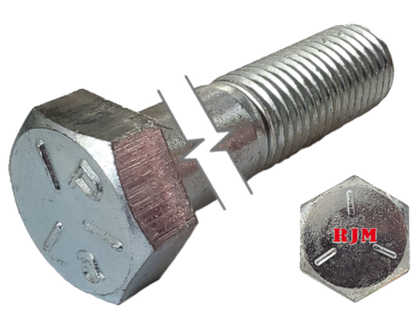

Imperial Hexagonal Bolt Partial Thread Zinc Plated  1-8 * 6-1/2" Grade 5 data-zoom=
Imperial Hexagonal Bolt Partial Thread Zinc Plated  1-8 * 6-1/2" Grade 5

Imperial Hexagonal Bolt Partial Thread Zinc Plated 1-8 * 6-1/2" Grade 5

RJM-Fasteners

  • 14.82 $ CAD
  • Save 0.78 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number B5-10065
Nominal Diameter 1-8
Length 6-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1-8
Min. Length 2-1/4"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 1-1/2"
Height 5/8"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 6-1/2" with a threading of 1-8 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Partial Thread Zinc Plated 1-8 * 6-1/2" Grade 5 are in stock.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Partial Thread Zinc Plated 1-8 * 6-1/2" Grade 5
Inventory Last Updated: Mar 28, 2024
